ABB PVI-6.0-TL-OUTD User Manual

- 20 -
000430BG
2 - Characteristics
Bracket dimensions

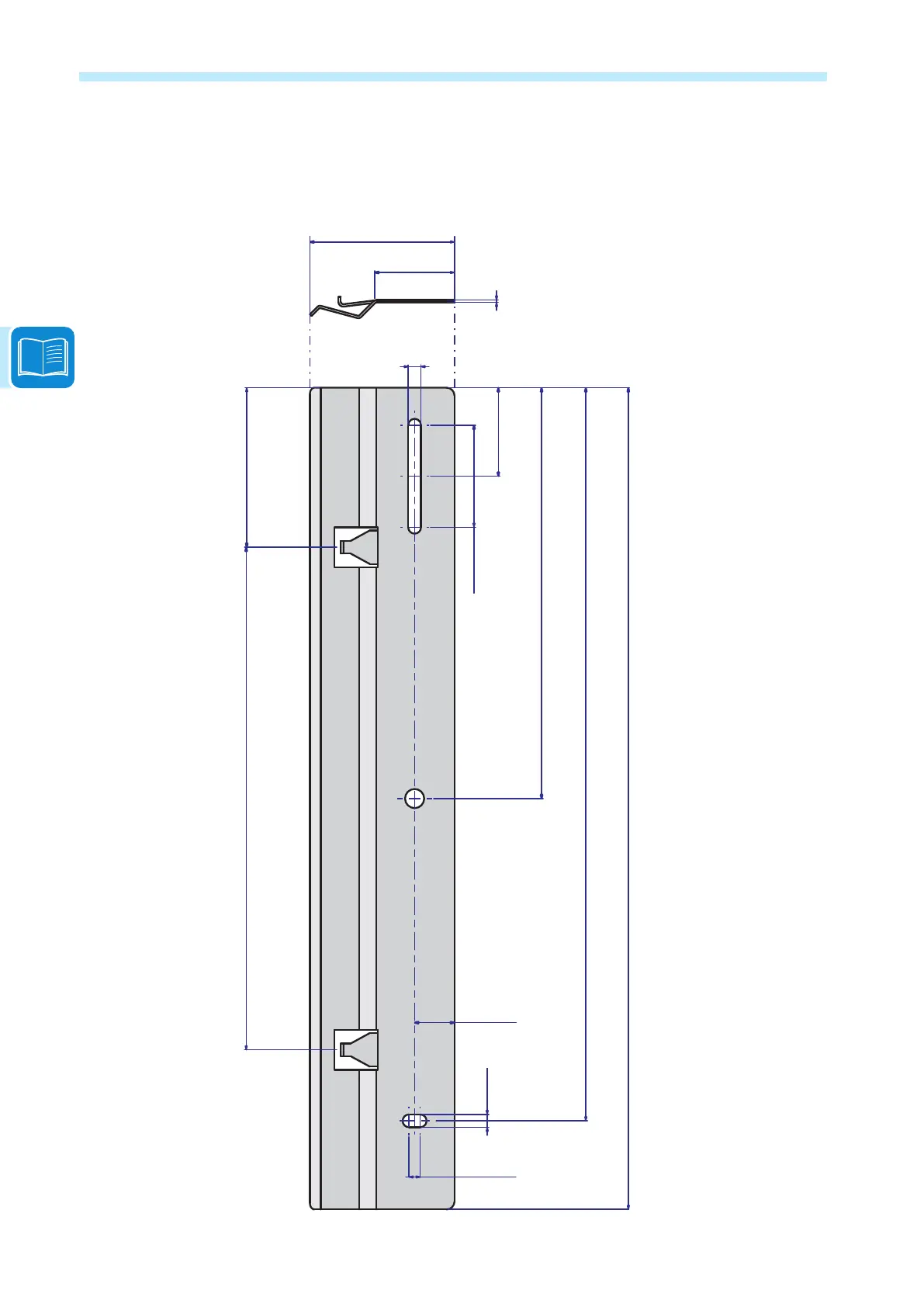

The wall mounting bracket dimensions are expressed in mm and inches
50.0 mm
1.96 in
8.0 mm
0.31 in
25.0 mm
0.98 in
7.0 mm
0.28 in
8.0 mm
0.31 in
1.5 mm
0.06 in
64.0 mm
2.52 in
257.5 mm
10.14 in
459.5 mm
18.09 in
515.0 mm
20.28 in
100.0 mm
3.94 in
315.0 mm
12.40 in
90.5 mm
3.56 in
55.5 mm
2.19 in
