ABB PVI-6.0-TL-OUTD User Manual

- 21 -
000431AG
2 - Characteristics
Efficiency curves
The equipment was designed in consideration of current energy conser-
vation standards, to avoid waste and unnecessary leakage.
Graphs of the efciency curves of all models of inverter described in this
manual are shown below.
The efciency curves are linked to technical parameters that are continually being developed
and improved and should therefore be considered approximate.

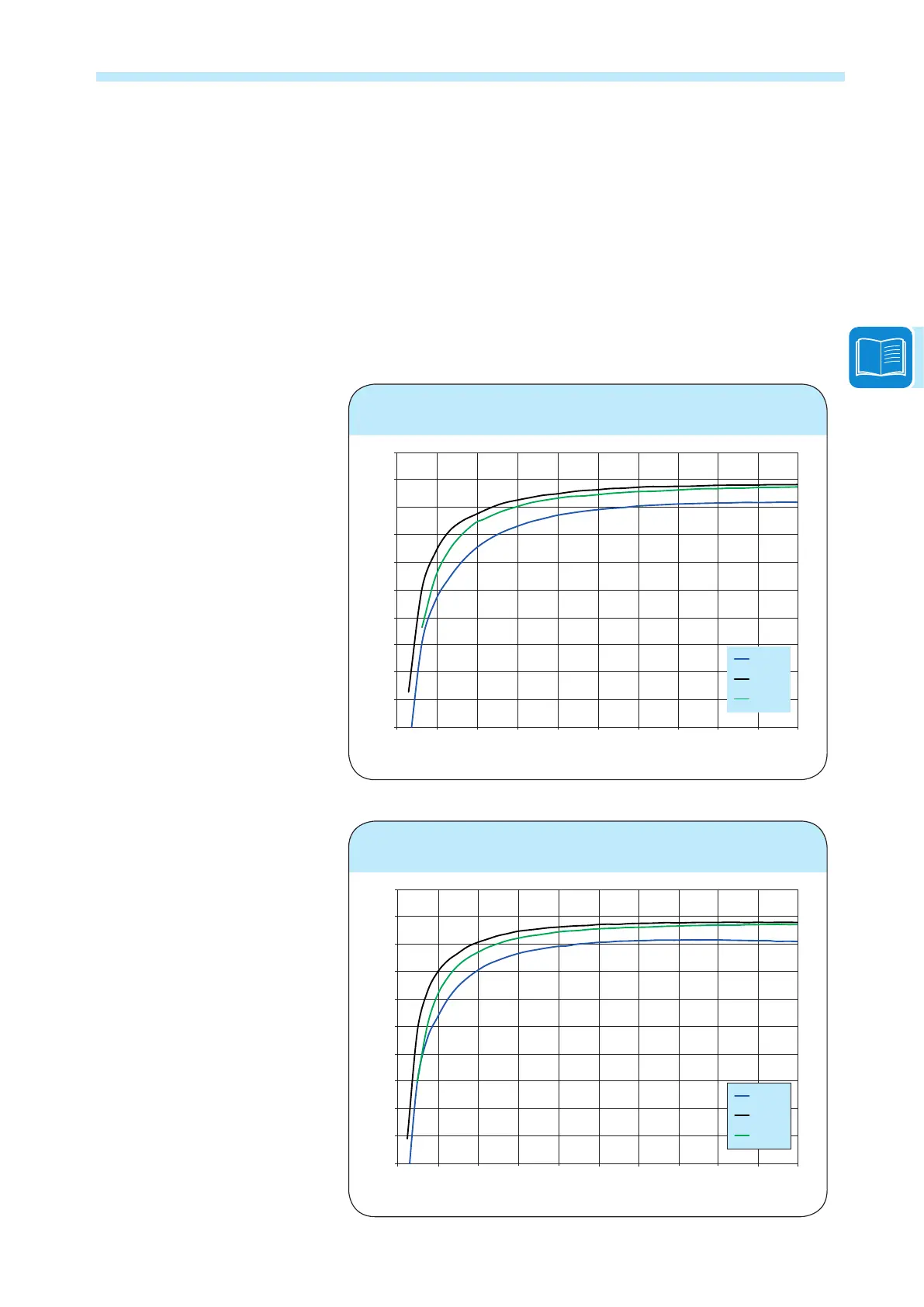

PVI-6.0-TL-OUTD - Efficiency curves
% of Rated Output Power
80%
82%
84%
86%
88%
90%
92%
94%
96%
98%
0% 10% 20% 30% 40% 50% 60% 70% 100%80% 90%
270 Vdc
580 Vdc
740 Vdc
100%
Efficiency [%]
PVI-8.0-TL-OUTD - Efficiency curves
% of Rated Output Power
Efficiency [%]
80%
82%
84%
86%
88%
90%
92%
94%
96%
98%
0% 10% 20% 30% 40% 50% 60% 70% 100%80% 90%
270 Vdc
580 Vdc
740 Vdc
100%
PVI-6.0-TL-OUTD
PVI-6.0-TL-OUTD-S
PVI-6.0-TL-OUTD-FS
PVI-8.0-TL-OUTD
PVI-8.0-TL-OUTD-S
PVI-8.0-TL-OUTD-FS
