- 48 -
000432AG
5 - Installation
Input connection to PV generator (DC side)
Once preliminary checks have been carried out and no problems found
with the photovoltaic system, and the channel conguration has been se-
lected (parallel or independent) you may connect the inputs to the inverter.
When the photovoltaic panels are exposed to sunlight they provide continuous DC voltage to
the inverter. To avoid risks of electrical shock, all wiring operations must be carried out with
the DC disconnect switch (internal or external to the inverter) off.

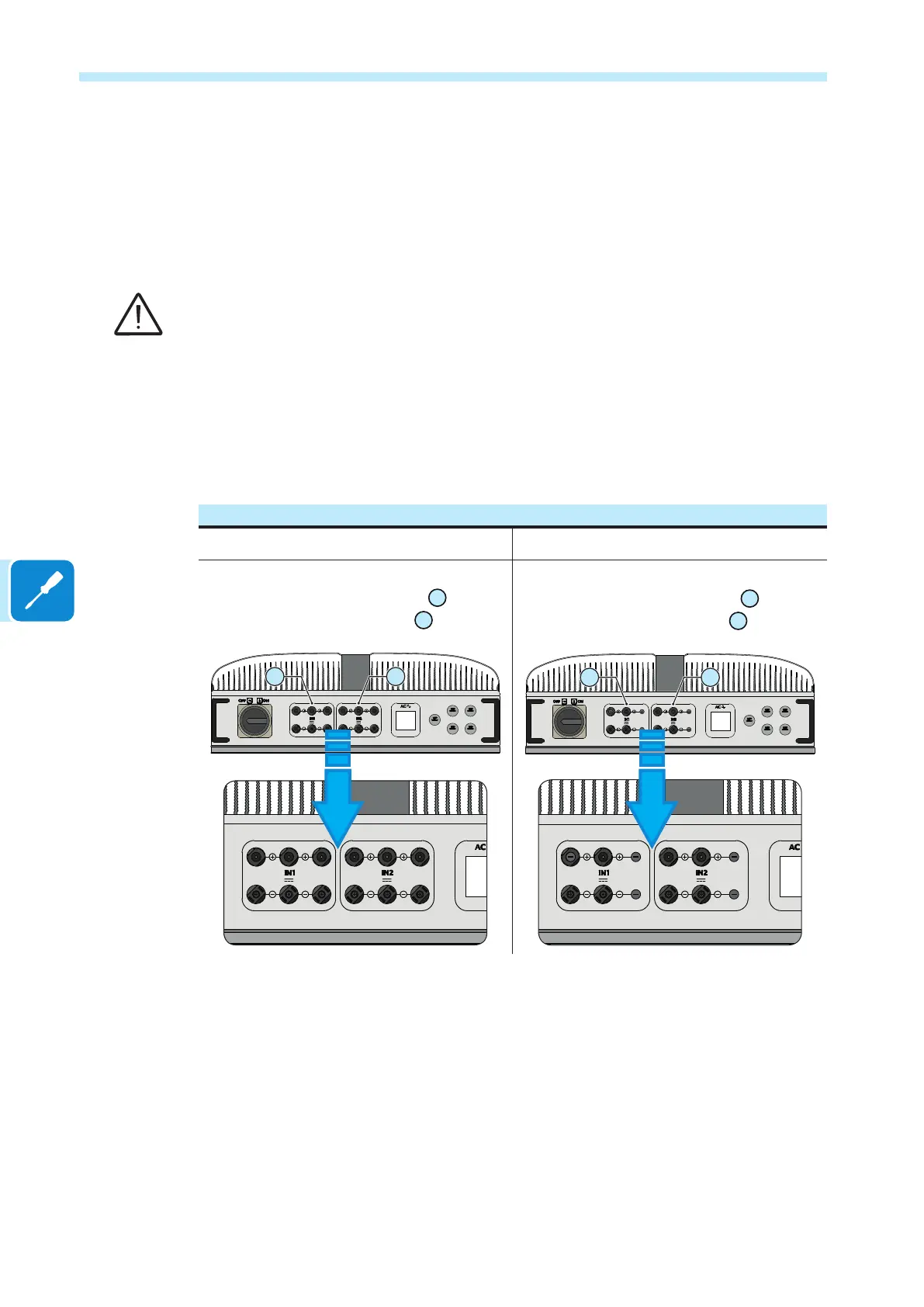

To connect the strings, you will need the quick t connectors (Weidmüller
or Multi-Contact) located on the lower part of the mechanics.
The number of quick t connectors varies according to the version of the
inverters.
STANDARD AND -FS VERSION -S VERSION
No. of input channels: 2 No. of input channels: 2
No. of quick t connectors:
12 (3 couple for MPPT1
09
,
3 couple for MPPT2
10
)
09 10
No. of quick t connectors:
8 (2 couple for MPPT1
09
,
2 couple for MPPT2
10
)
09 10
