ABB PVI-6.0-TL-OUTD User Manual

- 60 -
000440AG
5 - Installation

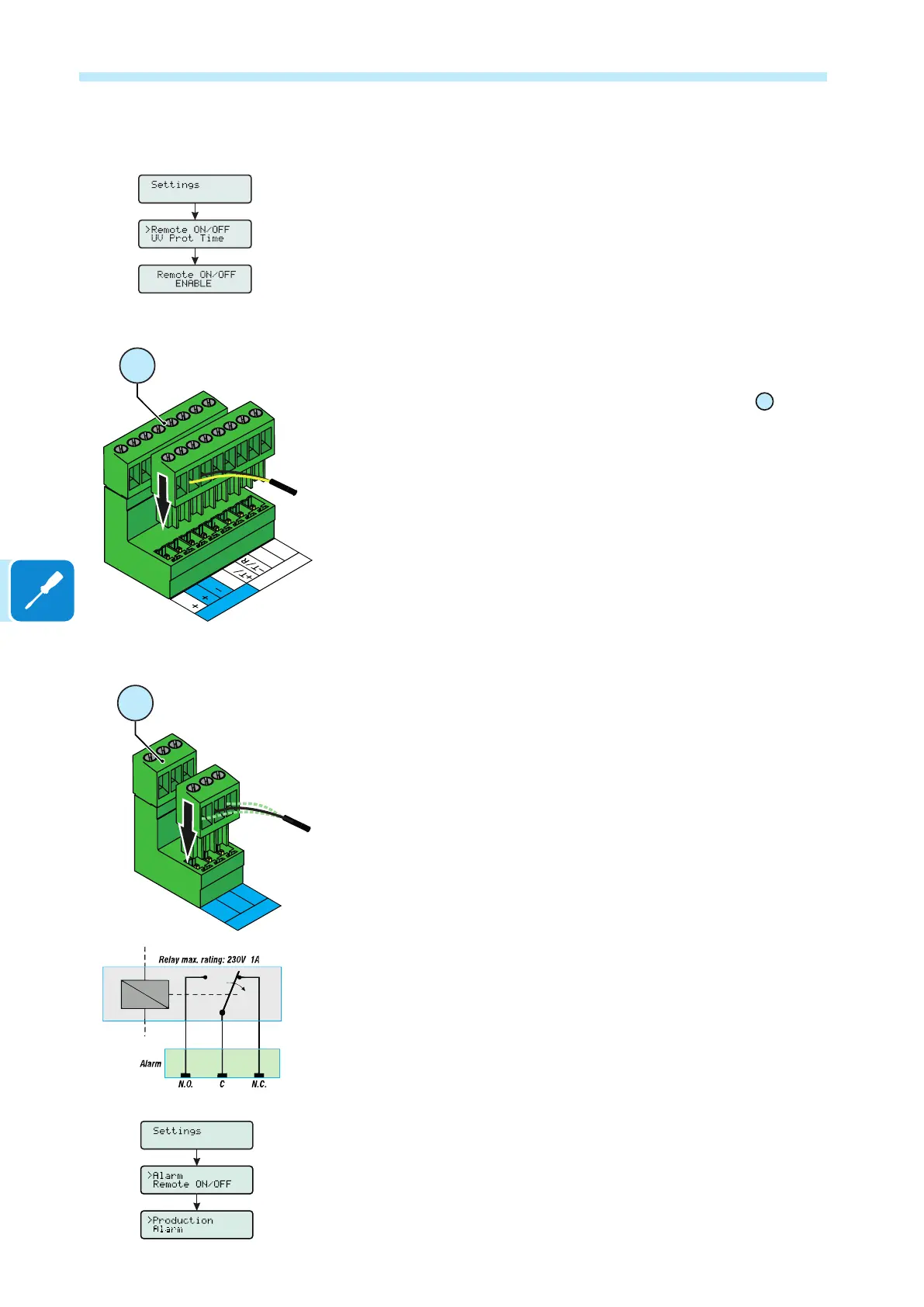

Remote control connection
The connection and disconnection of the inverter to and from the grid can
be controlled through an external control.
The function must be enabled in the relevant menu. If the Remote control
function is disabled, the switching on of the inverter is dictated by the
presence of the normal parameters that allow the inverter to connect to
the grid.
If the Remote control function is operating, besides being dictated by the
presence of the normal parameters that allow the inverter to connect to the
grid, the switching ON of the inverter also depends on the state of the R+
terminal compared to the R- terminal present on the connector
18
.
When the R+ signal is brought to the same potential as the R- signal (i.e.
by making a short circuit between the two terminals of the connector),
this causes the inverter to disconnect from the grid.
The remote control OFF condition is shown on the display.
The connections of this control are made between the “R+” input and “R-”.
Since this is a digital input, there are no requirements to be observed
as regards cable cross-section (it only needs to comply with the sizing
requirement for passing cables through the cable glands and the terminal
connector).
Configurable Relay connection (ALARM)
The inverter is equipped with a multifunction relay with congurable acti-
vation. It can be connected with normally open contact (being connected
between the N.O. terminal and the common contact C.) and with normal-
ly closed contact (being connected between the N.C. terminal and the
common contact C.).
Different types of devices (light, sound, etc.) can be connected to the
relay, provided they comply with the following requirements:
Relay Ratings
Maximum Voltage: 230 Vac
Maximum Current: 1 A
Cable requirements
External diameter: from 5 to 17 mm
Conductor cross-section: from 0.14 to 1.5 mm
2
This contact can be used in different operating congurations that can be
selected by accessing the "SETTINGS → Alarms" menu.
RS485
R
RTN
SLCD
REMOTE
5V
RTN
R
R
18
ALARM
C
N.O.
N.C.
18
