- 42 -

000437AG

5 - Installation

During installation do not place the

inverter with the front cover facing

towards the ground.

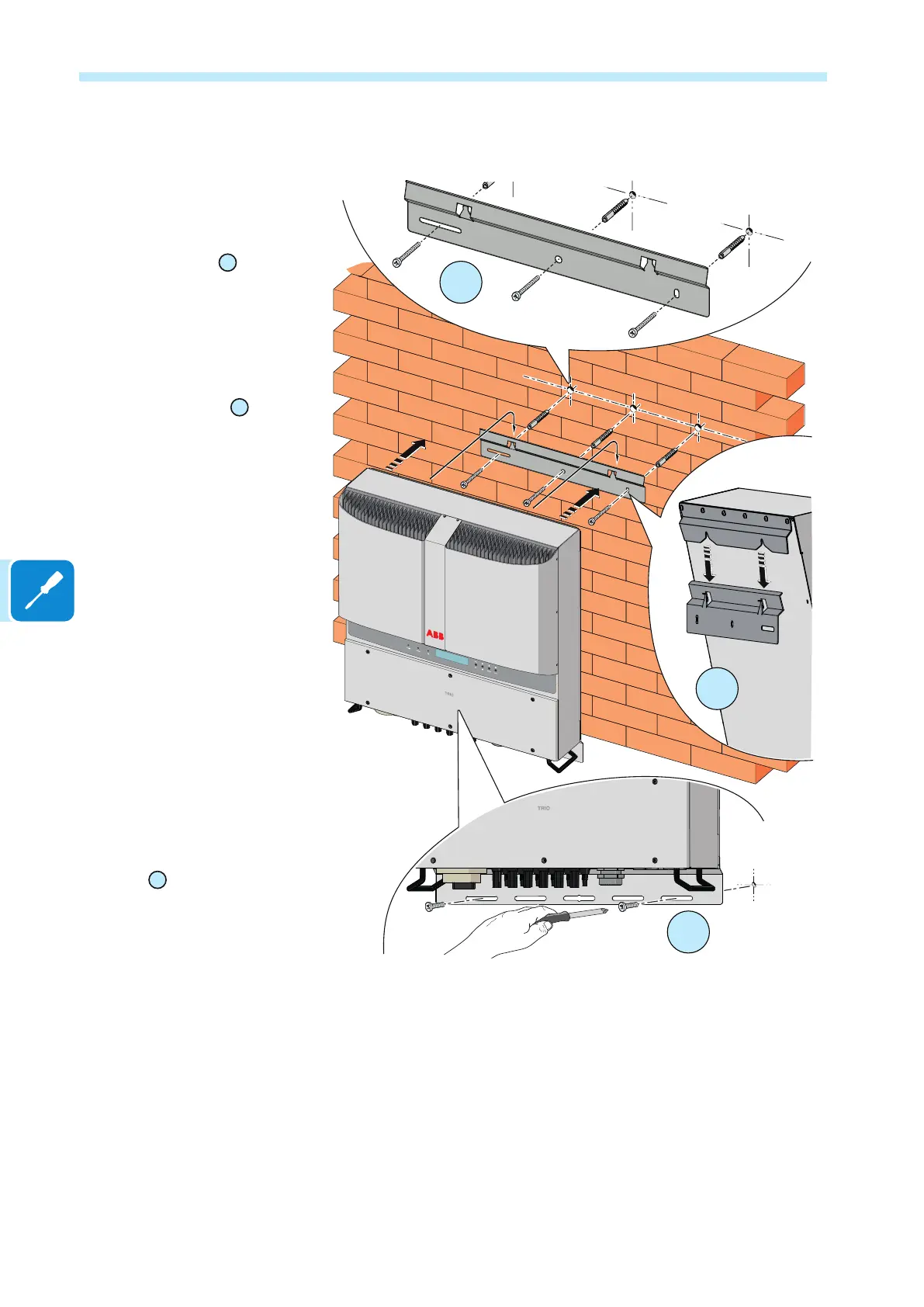

• Position the bracket

so that it is

perfectly level on the wall and use it

as a boring template.

• Make the 3 holes required, using a

drill with a 10 mm diameter bit. The

depth of the holes should be about

70 mm. On the bracket

there are

3 fastening holes.

• Fix the bracket to the wall with the 3

wall anchors, 10mm in diameter, sup-

plied. (Step 1).

• Hook the inverter to the bracket

springs in correspondence with the

insertion points in the bracket on the

back of the inverter (Step 2).

• Drill 2 holes in correspondence with

the slots on the inverter lower bra-

cket, using a drill with a 10 mm dia-

meter bit. The holes must be approxi-

mately 70 mm deep.

• Anchor the lower part of the inverter

using No. 2 plugs with a diameter of

10 mm, supplied (Step 3).

• Unscrew the 6 screws and open the

front cover

in order to make all the

necessary connections.

• Once the connections have been

made, close the cover by tightening

the 6 screws on the front to a mini-

mum tightening torque of 1.5 Nm.

Wall mounting
