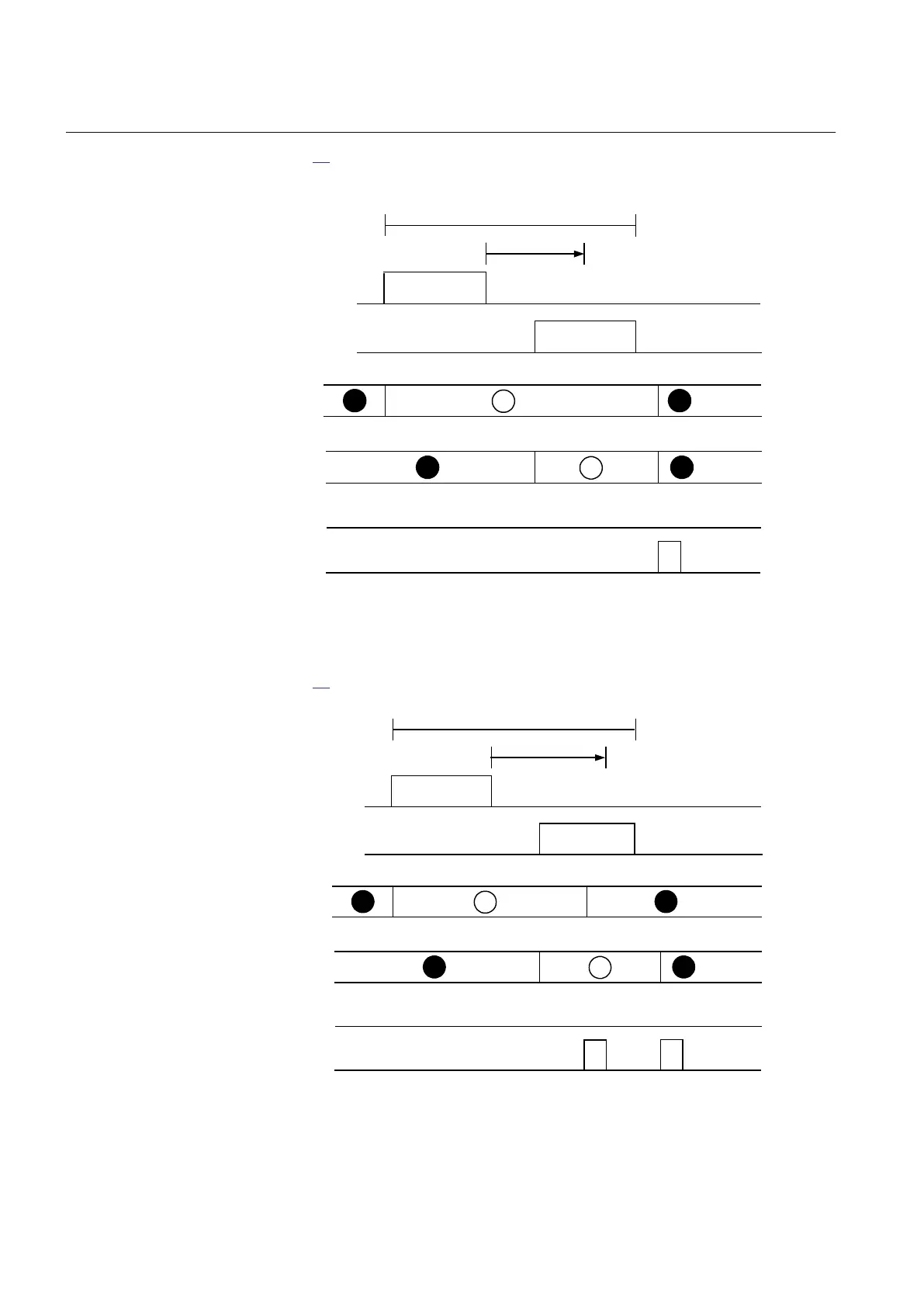

Figure 25 shows the timing diagram when a new indication appears after the first

one has reset but before tRestart has elapsed.

IEC01000241_2_en.vsd

Activating

signal 2

LED 2

Manual

reset

Activating

signal 1

Automatic

reset

LED 1

Disturbance

tRestart

IEC01000241 V2 EN-US

Figure 25: Operating sequence 6 (LatchedReset-S), two indications within

same disturbance but with reset of activating signal between

Figure 26 shows the timing diagram for manual reset.

IEC01000242_2_en.vsd

Activating

signal 2

LED 2

Manual

reset

Activating

signal 1

Automatic

reset

LED 1

Disturbance

tRestart

IEC01000242 V2 EN-US

Figure 26: Operating sequence 6 (LatchedReset-S), manual reset

Section 5 1MRK 506 382-UEN A

Local Human-Machine-Interface LHMI

84 Line distance protection REL650 2.2 IEC

Technical manual
