Acer Aspire V3-471 User Manual

Machine Maintenance Procedures 3-7
Getting Started 0
Flowchart Figure 3-1 identifies sections for the removal and install sequence. Follow the
order of the sequence to avoid damage to any of the hardware components.
Do the following prior to starting any maintenance procedures:
1. Remove power (A) from the system and peripherals (Figure 3-2).
2. Remove all cables from system.

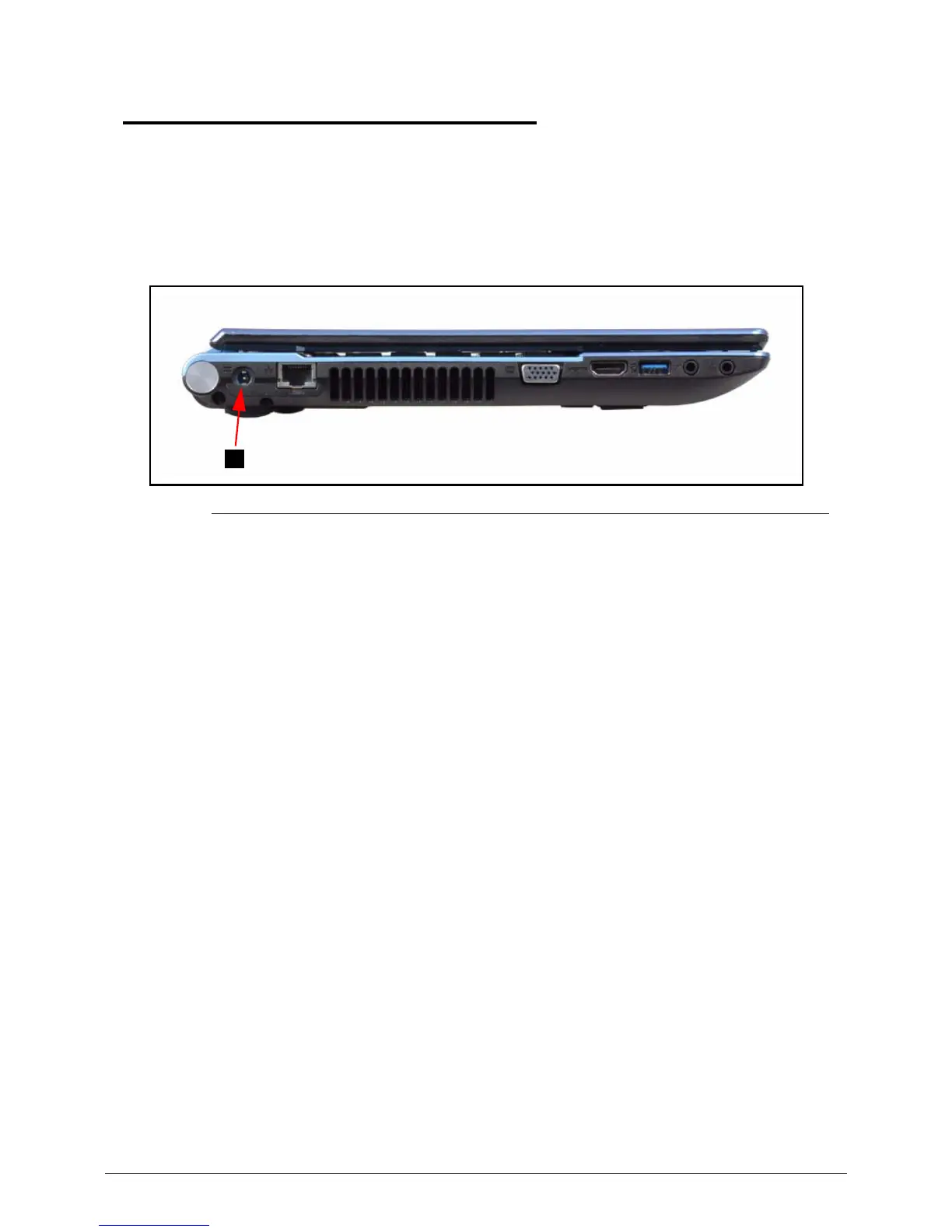

Figure 3-2. AC Adapter Outlet
3. Place the system on a stable work surface.
A

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
