Mainboard Removal 0
Prerequisite:
Keyboard Module Removal

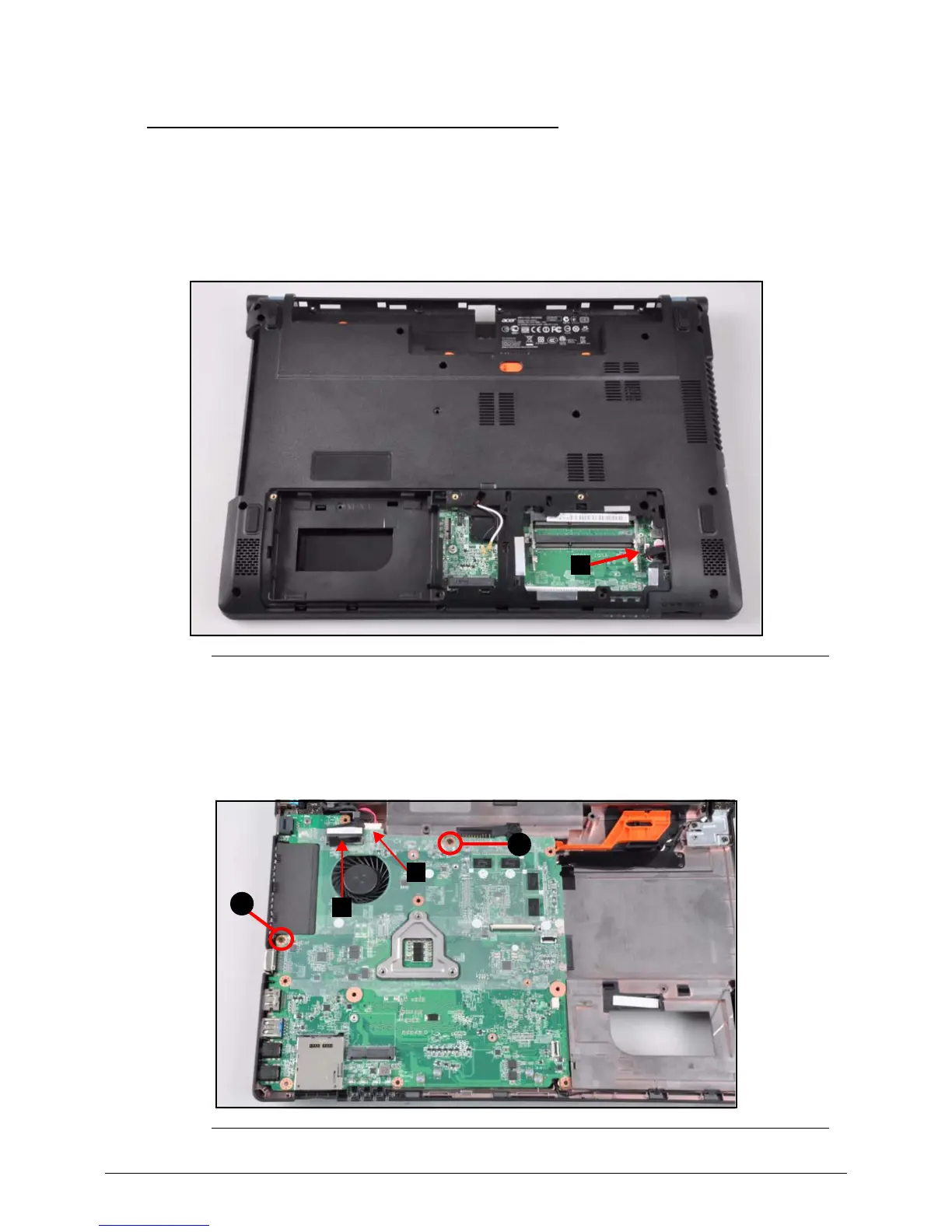

1. Disconnect the speaker cable from mainboard connector (A) (Figure 3-23).
Figure 3-23. Mainboard Backside
2. Disconnect LVDS cable from mainboard connector (C) (Figure 3-24).
3. Disconnect DC-in cable from mainboard connector (D) (Figure 3-24).
4. Remove two (2) screws (B) securing the mainboard in place (Figure 3-24).
Figure 3-24. Mainboard Frontside
A
C
B
B
D

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
