Acer Aspire V3-471 User Manual

3-30 Machine Maintenance Procedures
RTC battery Removal 0
Prerequisite:
Mainboard Removal
1. Find the RTC battery (B) on the mainboard. Refer to Figure 3-29.
2. Disconnect the RTC battery cable from mainboard connector (A) (Figure 3-29).
3. Pry up the the RTC battery from the adhesive and remove it.

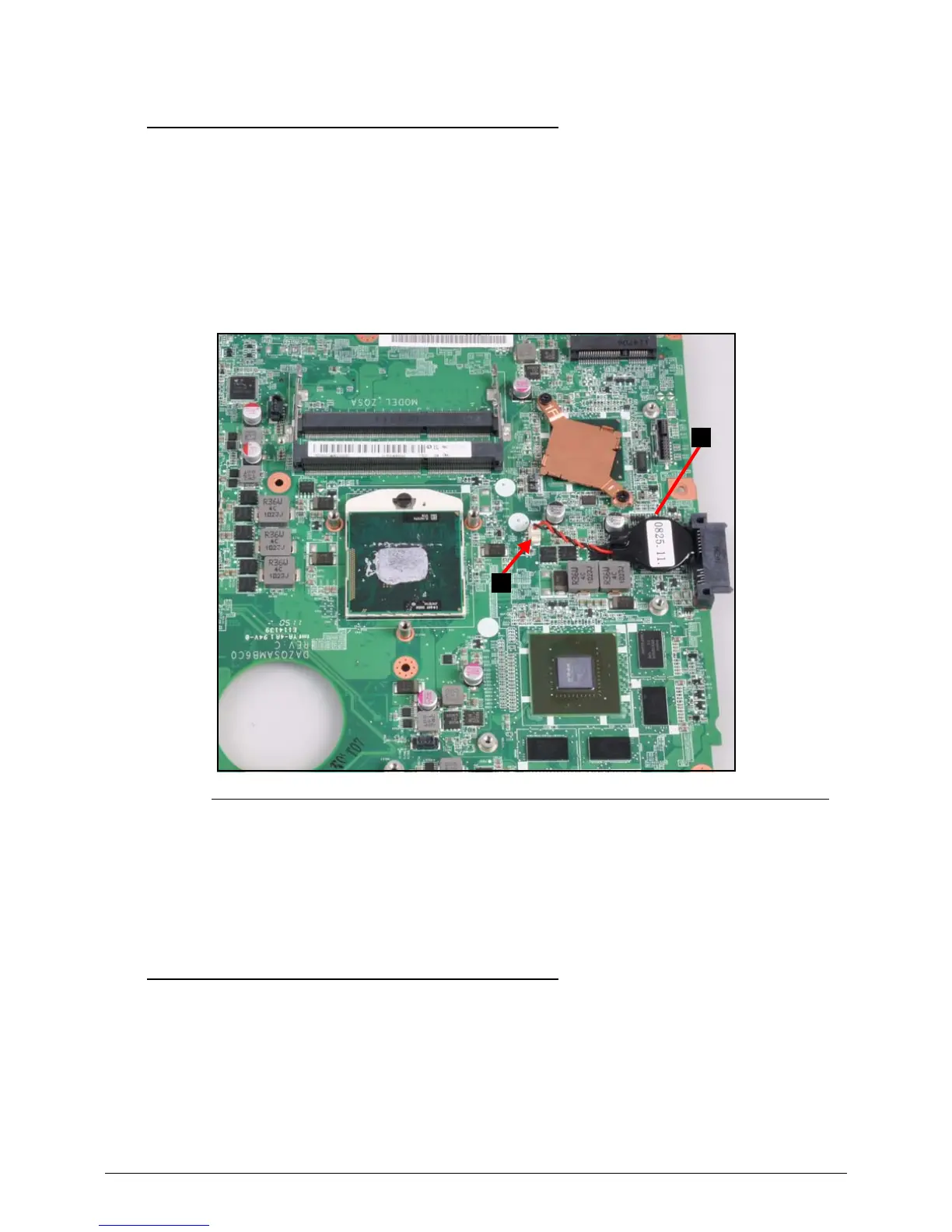

Figure 3-29. RTC battery
IMPORTANT:
+
Follow local regulations for battery (Figure 3-29) disposal.
RTC battery Installation 0
1. Place the RTC battery (B) onto the mainboard and secure it in place with adhesives.
Refer to Figure 3-29.
2. Connect the RTC battery cable to mainboard connector (A) (Figure 3-29).
3. Install Mainboard.
A
B

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
