Machine Maintenance Procedures 3-15

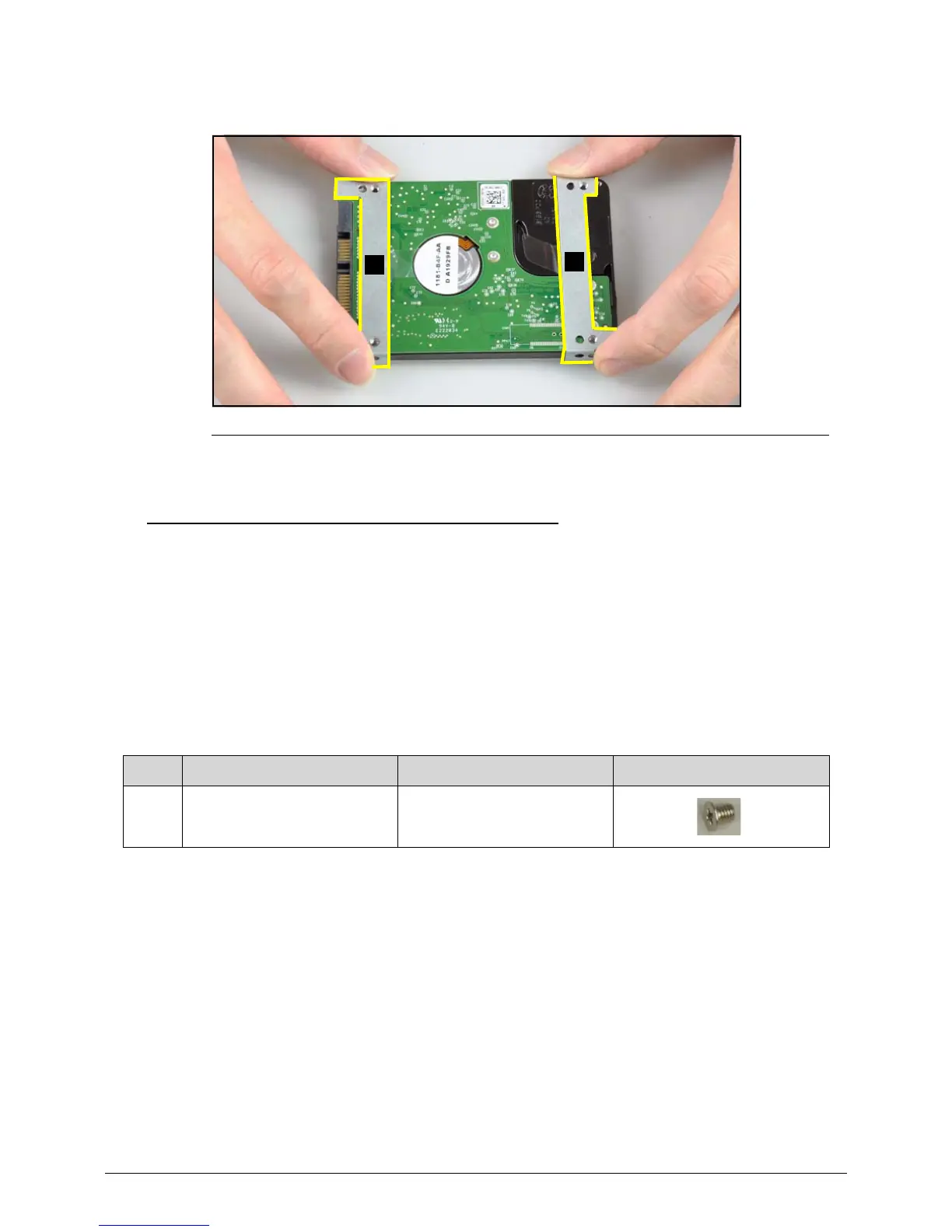

6. Remove HDD bracket (G) from HDD (Figure 3-12).
Figure 3-12. HDD Module
HDD Module Installation 0
1. Place HDD brackets (G) onto HDD (Figure 3-12).
2. Install and secure four (4) screws (F) to HDD brackets (G) (Figure 3-11).
3. Attach HDD cable to HDD connector (E). Refer to Figure 3-11.
4. Place HDD module onto the base assembly and connect HDD module to mainboard
connector (C). Refer to Figure 3-10.
5. Connect HDD cable to mainboard connector (D) (Figure 3-10).
6. Install Base Door.
ID Size Quantity Screw Type
F M3.0*3.5 Ni 4
G
G

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
