Acer Aspire V3-471 User Manual

Machine Maintenance Procedures 3-31
Thermal Module Removal 0
Prerequisite:
Mainboard Removal
1. Find the thermal module on the mainboard. Refer to Figure 3-30.
2. Loosen five (5) captive screws (A) in numerical order from one (1) to five (5). Refer to
Figure 3-30.
3. Disconnect the thermal fan cable from mainboard connector (B) (Figure 3-30).
4. Remove thermal module from the mainboard.

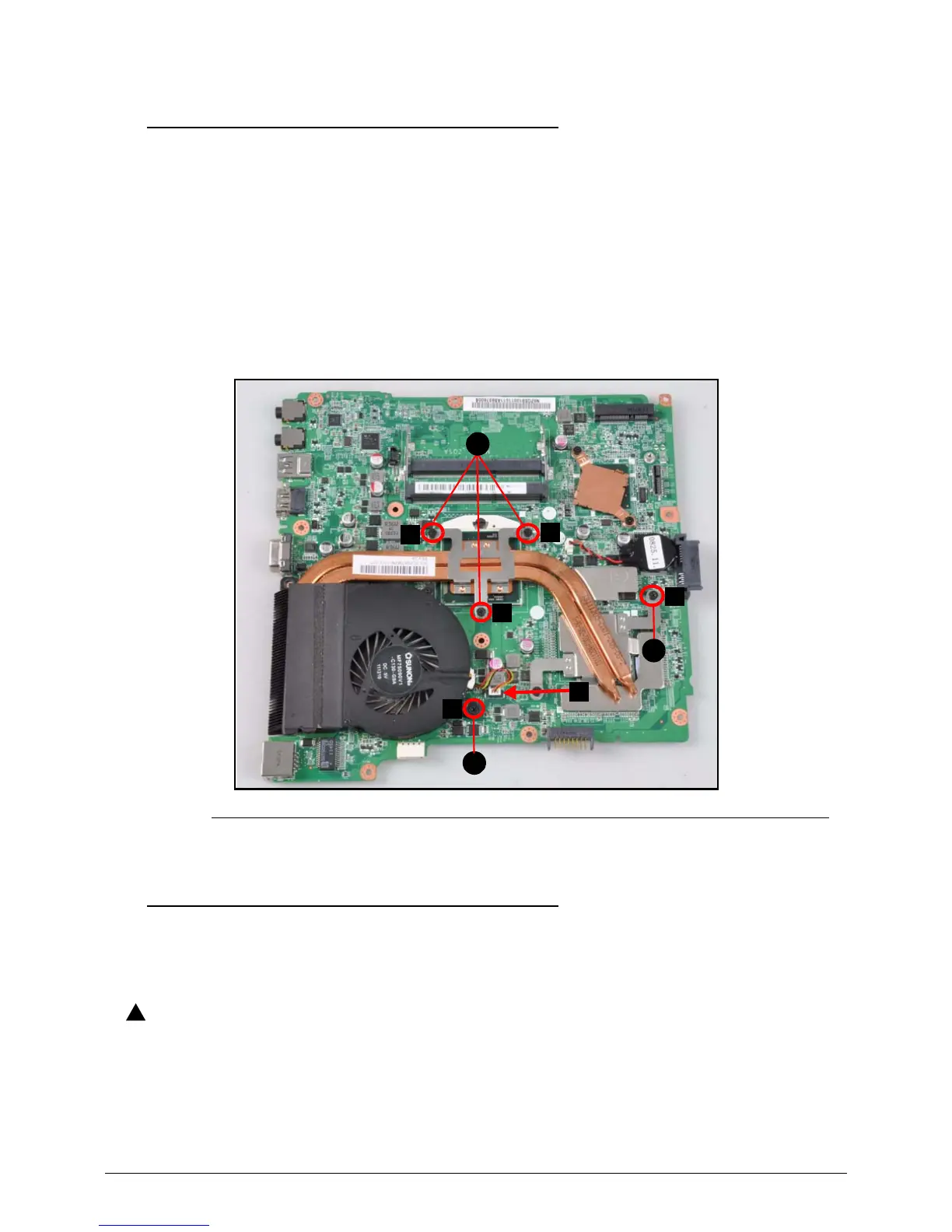

Figure 3-30. Thermal Module
Thermal Module Installation 0
IMPORTANT:
+
Apply approved thermal grease and ensure all heat pads are in position
before replacing module.
CAUTION:
!
Use caution when applying thermal grease. Thermal grease may cause
damage to the mainboard.
The following thermal grease types are approved for use:
Silmore GP50
Honeywell
1
2
3
B
A
A
A
5
4

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
