Acer Aspire V3-471 User Manual

3-8 Machine Maintenance Procedures
Battery Pack Removal 0
1. Place computer on flat surface, battery side is up.
2. Use the screwdriver to push and hold the battery release latch (A) to unlock position
(Figure 3-3). The battery pack will automatically realease from the battery bay.
3. Lift battery pack (B) from battery bay (Figure 3-3).

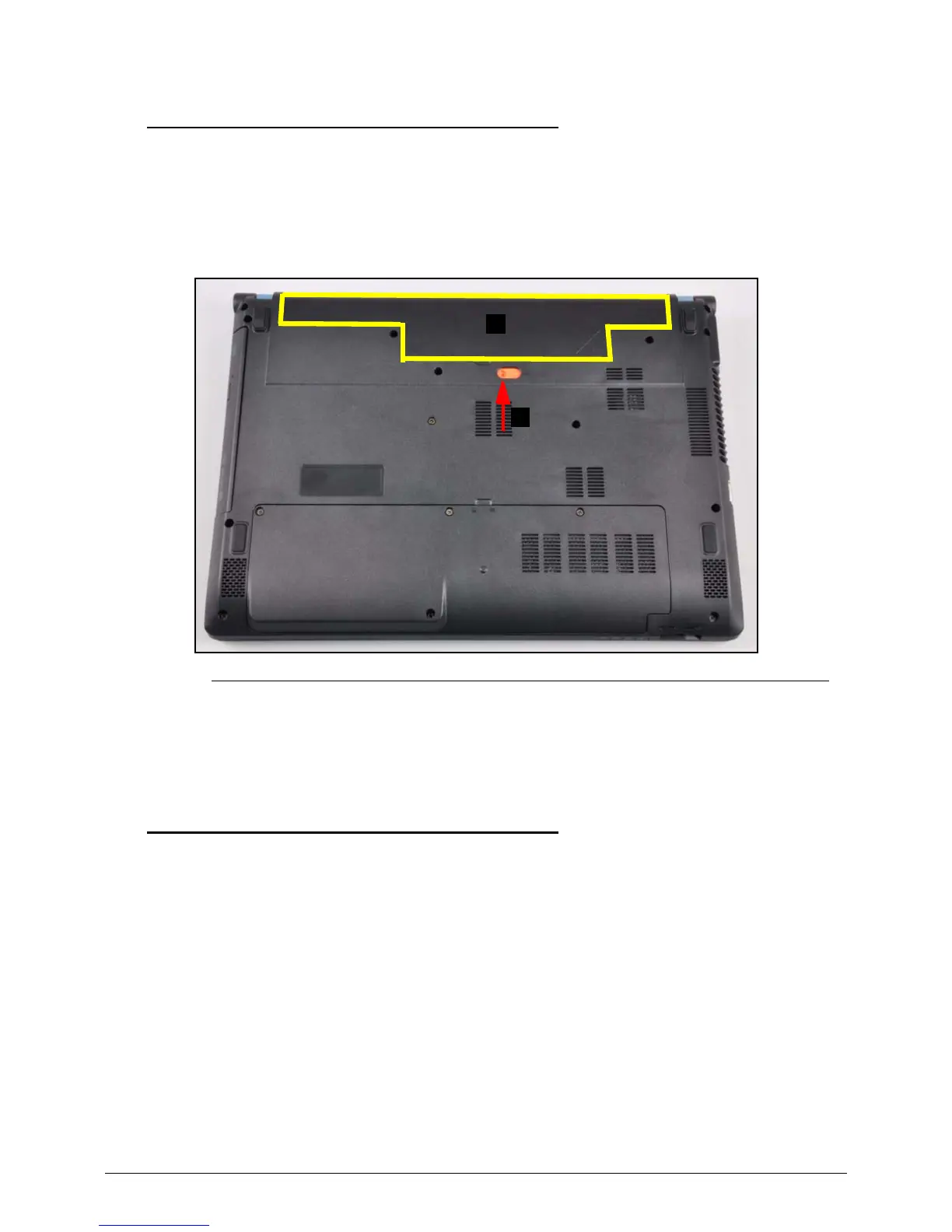

Figure 3-3. Battery
IMPORTANT:
+
Follow local regulations for battery (B) disposal (Figure 3-3).
Battery Pack Installation 0
1. Silde the battery pack (B) back into the battery bay (Figure 3-3).
2. The battery realease latch (A) will automatically click back to the locked position.
A
B

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
