Acer Aspire V3-471 User Manual

Machine Maintenance Procedures 3-19
Palm Rest Cover Installation 0
1. Place the palm rest cover (C) face down on the keyboard. Refer to Figure 3-16.
2. Connect Touchpad FPC (A) to Touchpad connector (B). Refer to Figure 3-16.
3. Turn the palm rest cover over and align it properly to the edge of the system.
4. Install and secure eight (8) screws to the palm rest cover on the bottom of the system.
Refer to Figure 3-15.
5. Install HDD Module.

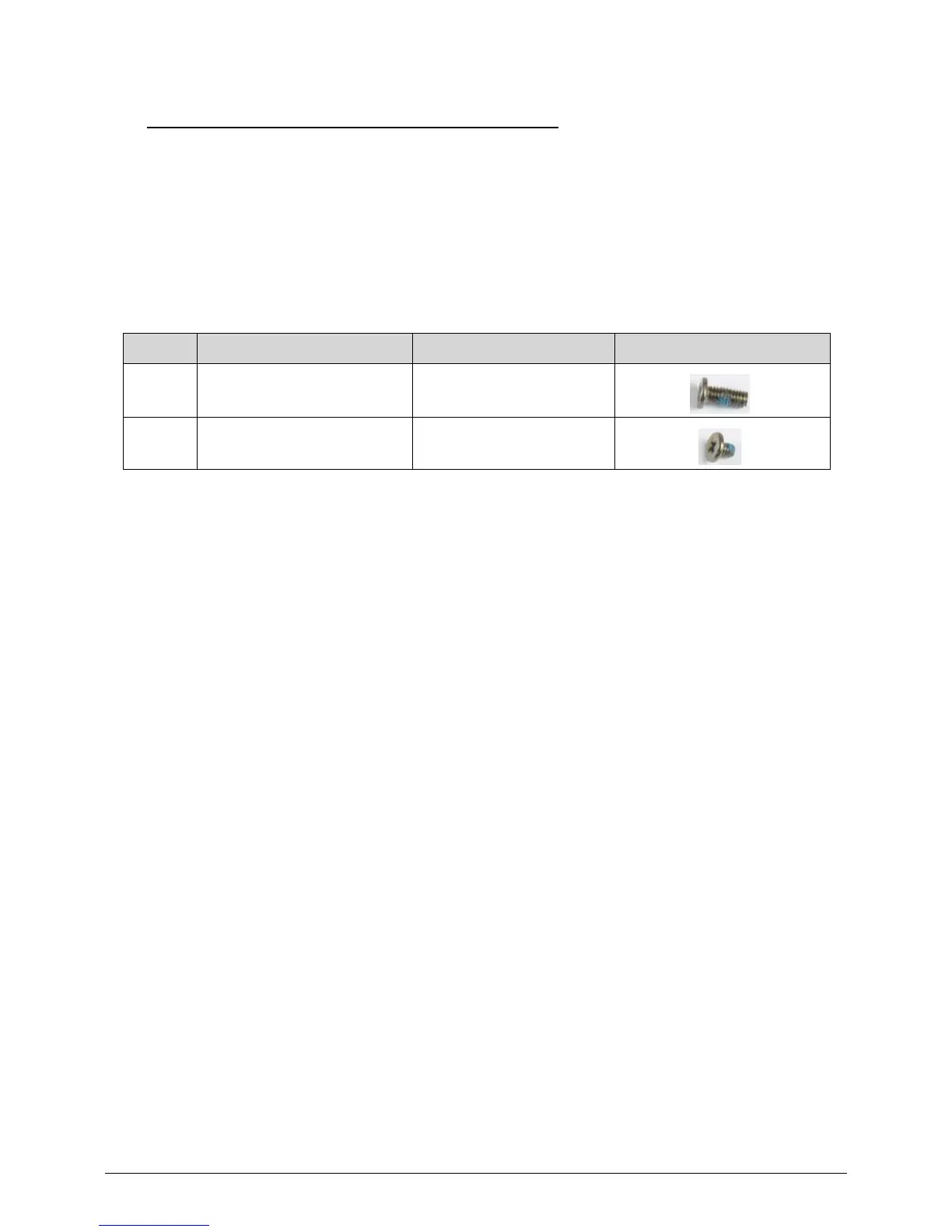

ID Size Quantity Screw Type
Red
Call out
M2.5*6 7
Green
Call out
M2*3 1

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
