Acer Aspire V3-471 User Manual

Machine Maintenance Procedures 3-35
LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Mainboard Removal
1. Remove the tape (C) securing the cables on the base assembly and remove the cables
from the cable guides (Figure 3-33).
2. Remove three (3) screws (A) securing LCD hinges in place (Figure 3-33).

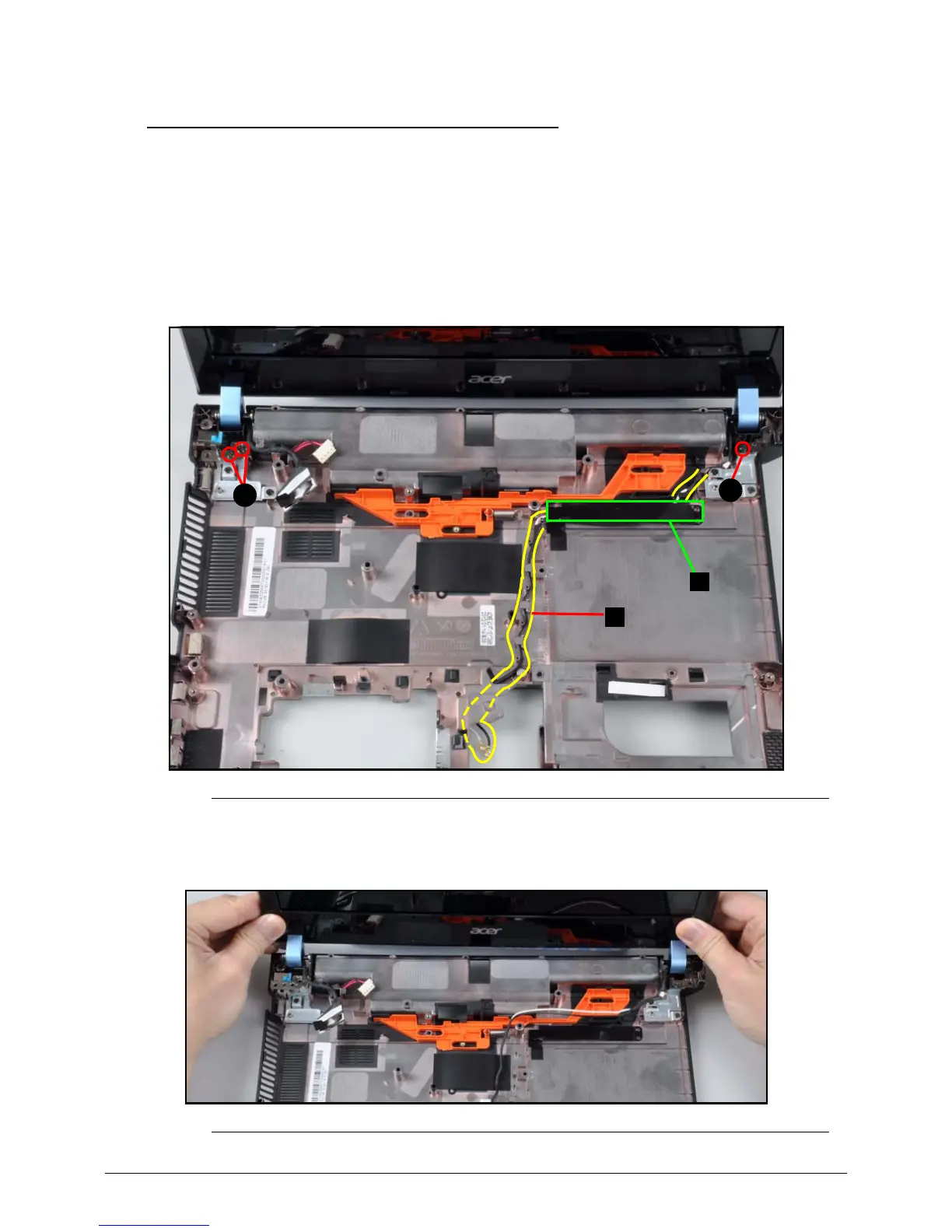

Figure 3-33. LCD Module
3. Remove the LCD module from the base assembly (Figure 3-34).
Figure 3-34. LCD Module Removal
A
A
B
C
