Acer Aspire V3-471 User Manual

Machine Maintenance Procedures 3-37
DC-in Jack Removal 0
Prerequisite:
LCD (Liquid Crystal Display) Module Removal
1. Find DC-in Jack Module (A) on the base assembly. Refer to Figure 3-35.
2. Remove DC-in Jack Module (A) from the base assembly.

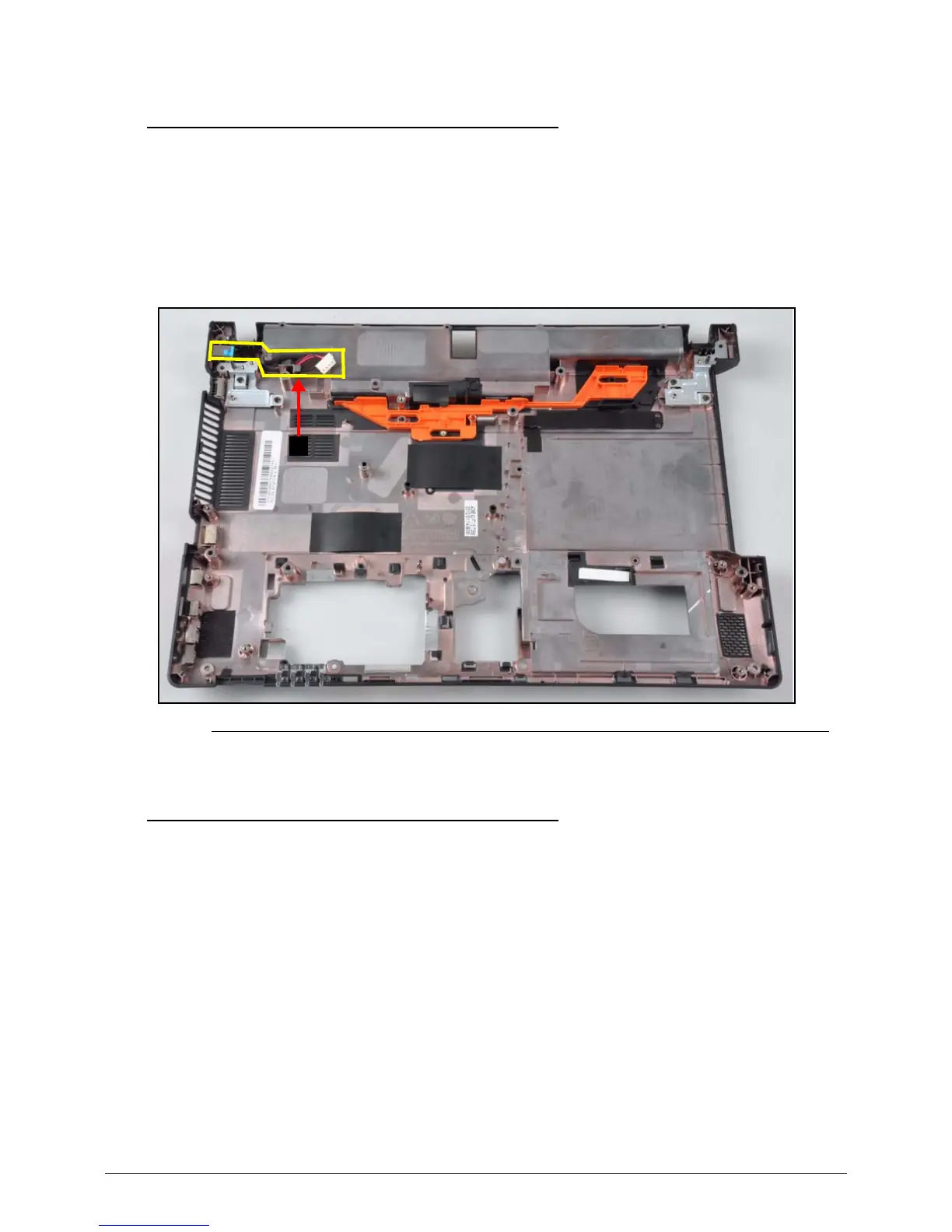

Figure 3-35. DC-in Jack Module
DC-in Jack Installation 0
3. Place DC-in Jack Module (A) on the top assembly. Refer to Figure 3-35.
4. Secure DC-in cable to the cable guide on the top assembly (Figure 3-35).
5. Install LCD Module.
A

Acer Aspire V3-471 Specifications

General

Optical Drive	DVD-Super Multi DL drive
Processor	Intel Core i3/i5/i7 (depending on model)
RAM	4GB DDR3
Storage	500GB HDD
Display	14-inch HD (1366x768)
Graphics	Intel HD Graphics 3000
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Weight	2.1 kg
Dimensions	342 x 245 x 25.4 mm
Ports	HDMI, VGA, Ethernet, headphone/microphone combo jack
Wireless	802.11b/g/n
