Rockwell Automation Publ
ication 750-IN001P-EN-P -
April 2017
141

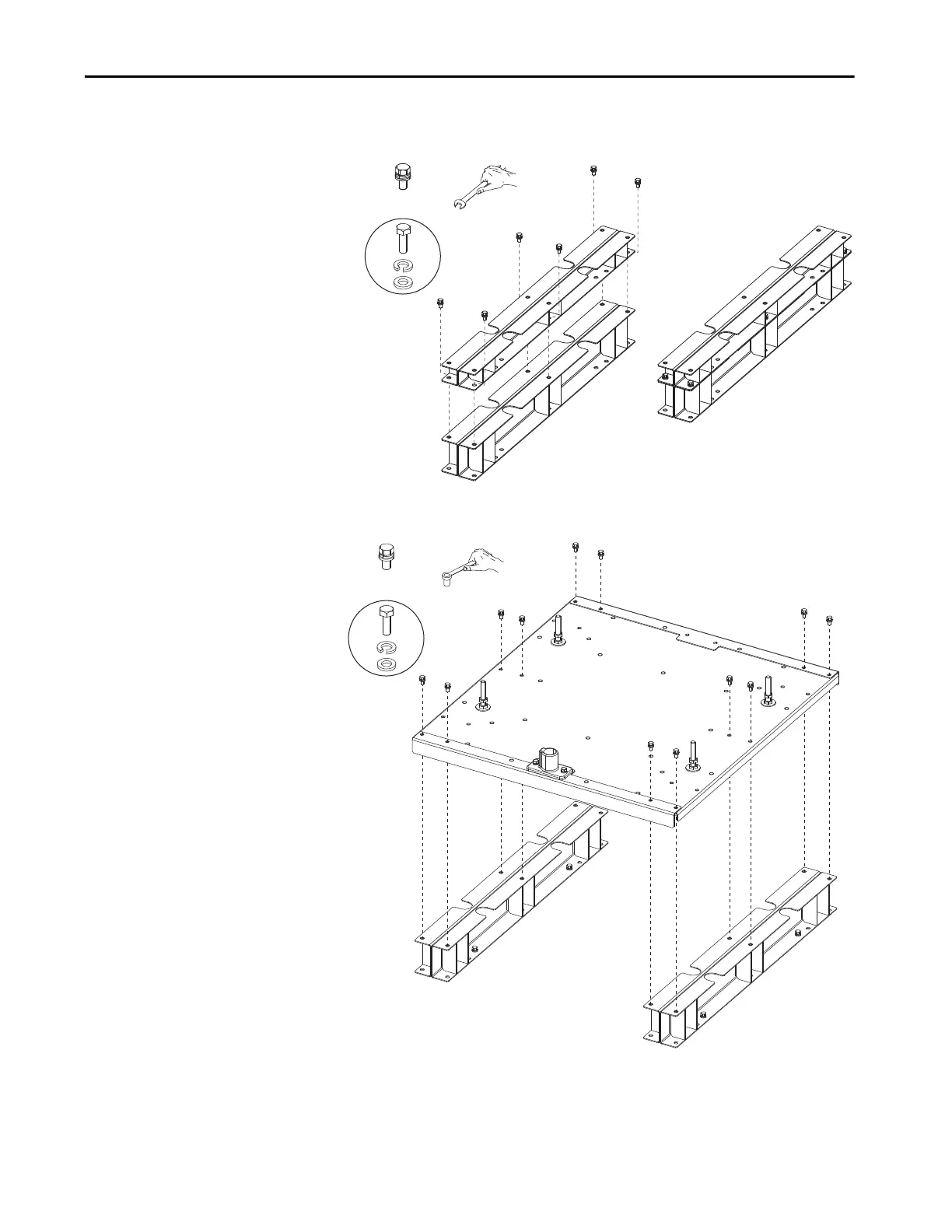

Lift and Mount the Drive
Chapte
r 3
4.
Se
le
ct
the spac
er or
spac
ers re
qu
ire
d.
Comb
ine
spac
ers us
ing bo
lts
pr
ov
ided as
needed
.
5.
Bolt the space
r or s
pacer assembly
to t
he bottom of t
he cart ch
assis.
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
140
142
