142
Rockwell Automation Publ
ication 750-IN001P-EN-P -
April 2017
Chapt
er 3
Lift and Moun
t the Drive

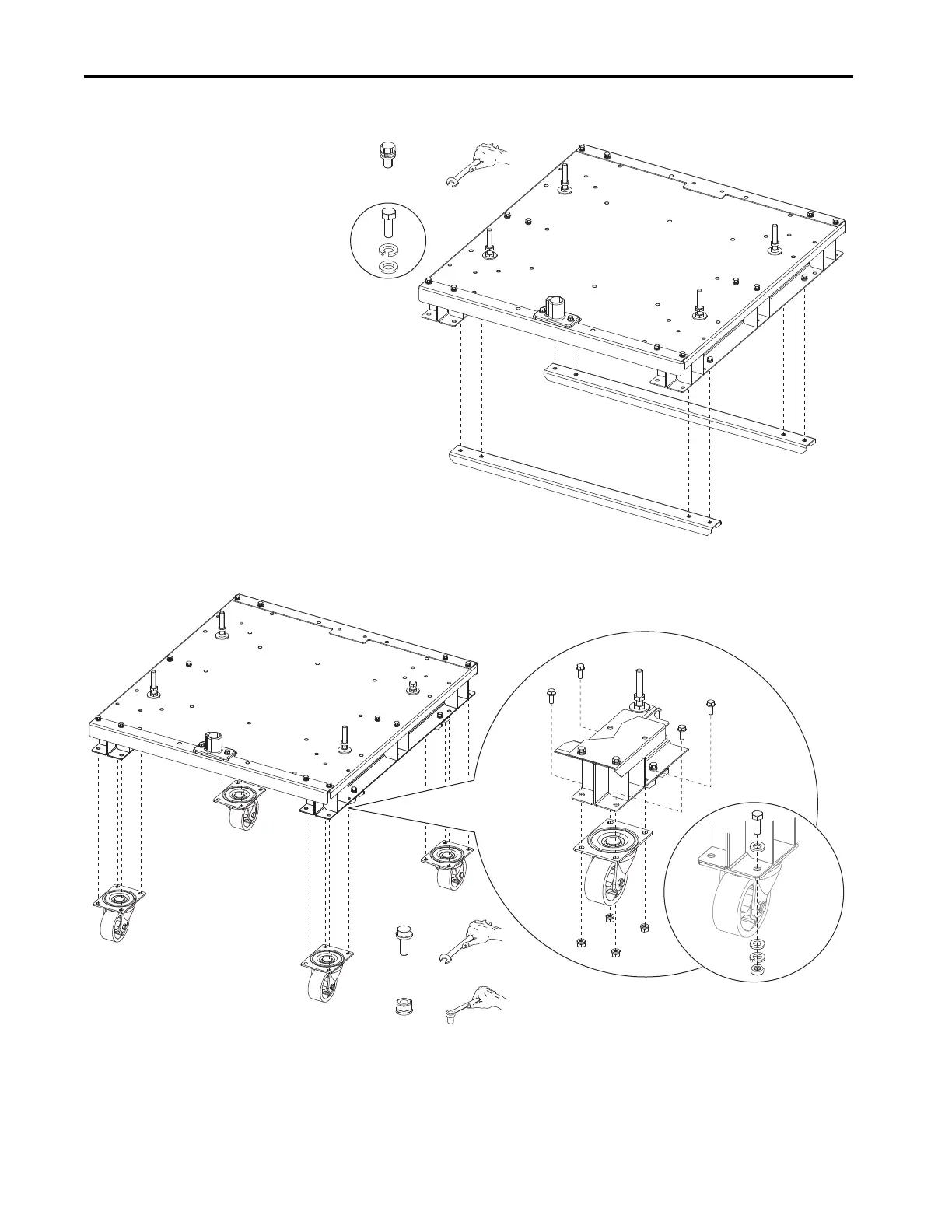

6.
Bolt the cros
s beams to t
he bottom of t
he spacers.
7.
Bol
t th
e ca
sters
to th
e b
ottom
spac
er.
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
M6 x 1.0
11.8 N•m (104 lb•in)
10 mm
141
143
