Rockwell Automation Publication 1756-UM001M-EN-P - February 2012 49
Start Using the Controller Chapter 3

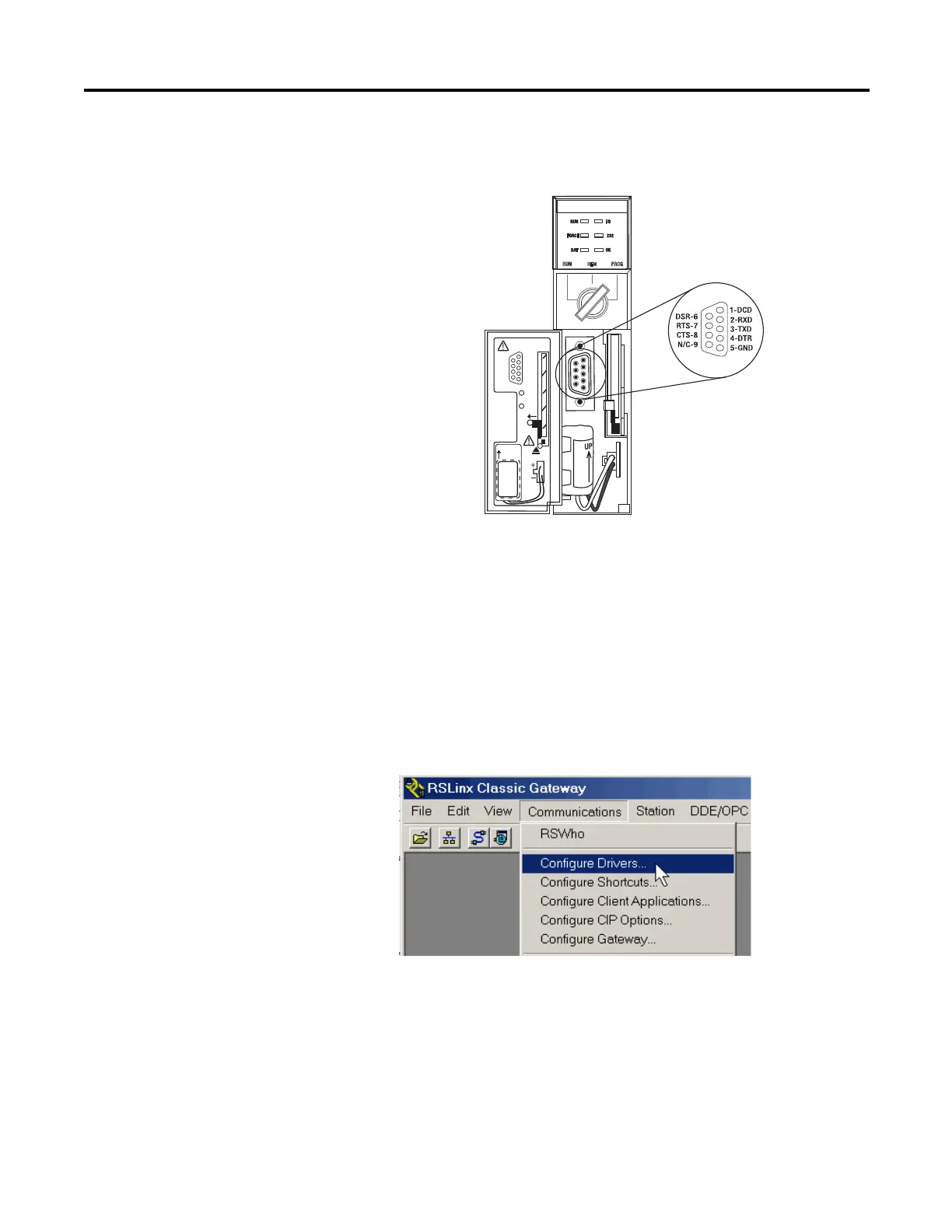

Plug the workstation end of the serial cable into the RS-232 port on the front of
the controller.
Configure the Serial Driver
Use RSLinx software to configure the RS232 DF1 device driver for serial
communication.
To configure the driver, perform this procedure.
1. In RSLinx software, from the Communications menu, choose Configure
Drivers.
RS232
BATTERY
PORT
1-DCD
2-RXD
4-DTR
3-TXD
5-GND
DSR-6
CTS-8
RTS-7
N/C-9
1
2
BATTERY
DATE
UP
COMPACT
FLASH
2
To
Insert 1
To Eject
1 + 2
2
1
1
