Publication 1766-RM001A-EN-P - October 2008

66 Function Files

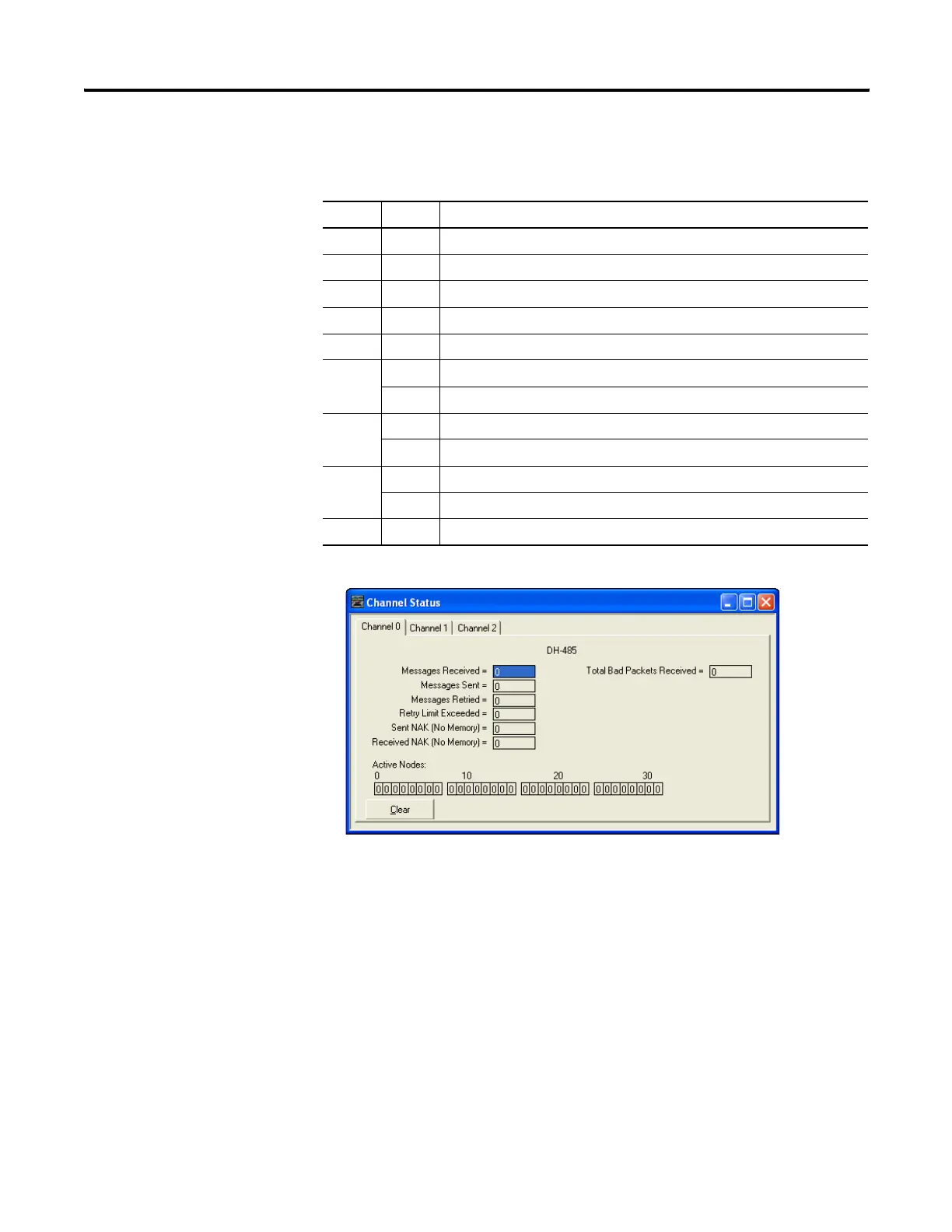

DH-485 Diagnostic Counters Block

Word Bit Description

6 - Diagnostic Counters Category Identifier Code (always 2)

7 - Length (always 30)

8 - Format Code (always 0)

9 - Total Message Packets Received

10 - Total Message Packets Sent

11 0…7 Message Packet Retries

8…15 Retry Limit Exceeded (Non-Delivery)

12 0…7 NAK – No Memories Sent

8…15 NAK – No Memories Received

13 0…7 Total Bad Message Packets Received

8…15 Reserved

14…22 - Reserved
