Allied Telesis AT-8000S Series User Manual

Page 138
Allied Telesis AT-8000S Switch
Web Browser Interface User’s Guide
Configuring Bandwidth QoS
TheBandwidth Page allows network managers to define the bandwidth settings for a specified egress interface.
Modifying queue scheduling affects the queue settings globally. The Bandwidth Page is not used with the Service
mode, as bandwidth settings are based on services.
Queue shaping can be based per queue and/or per interface. Shaping is determined by the lower specified value.
The queue shaping type is selected in the Bandwidth Page.
To configure bandwidth:
1. Click Services > Bandwidth. The Bandwidth Page opens:

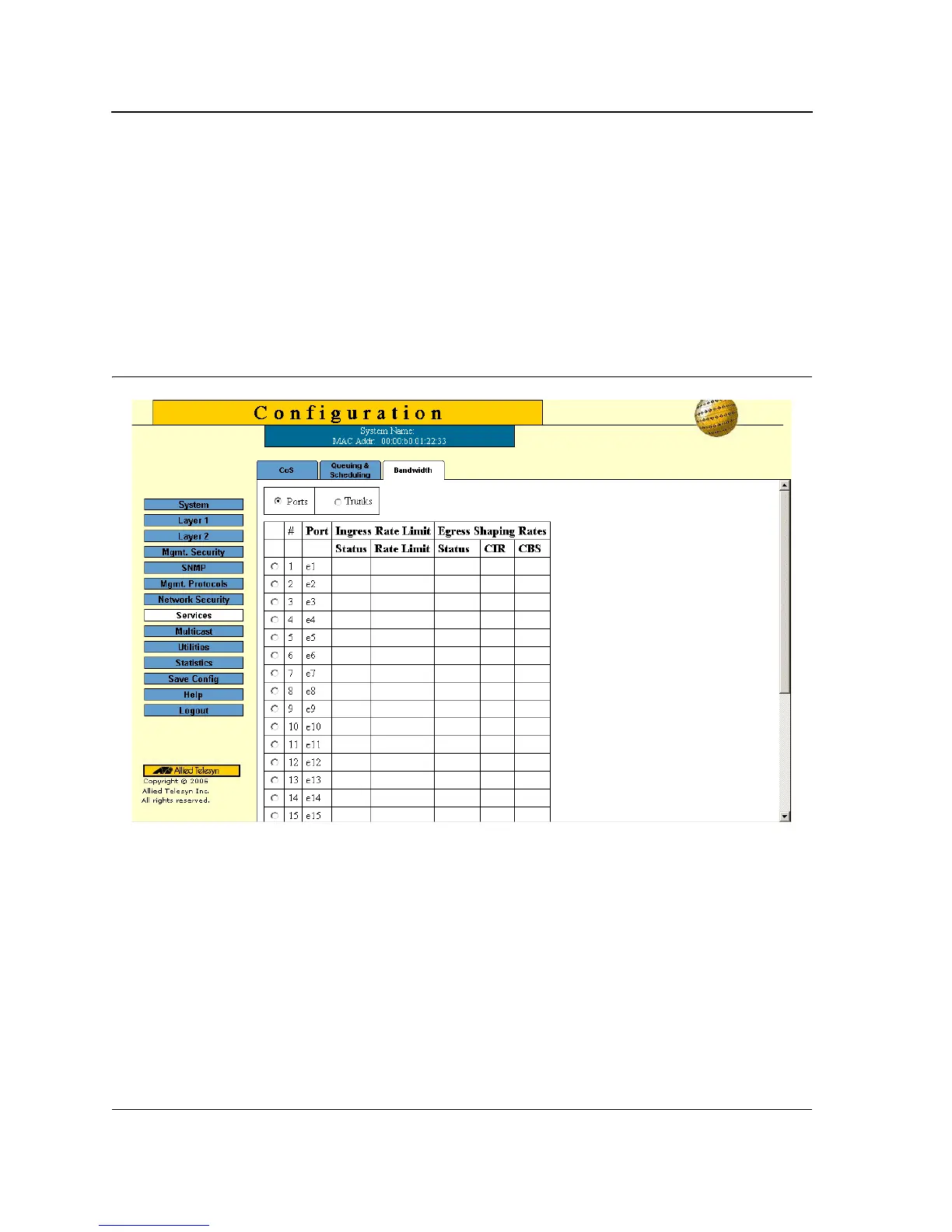

Figure 89: Bandwidth Page
As a default the Bandwidth Page opens displaying the port options. The fields are identical when displaying the
trunk CoS. The Bandwidth Page contains the following fields:
• Port — Indicates the interface for which the queue shaping information is displayed. The field values are:
• Of Unit — Indicates the stacking members for which the bandwidth settings are displayed.
– Port — Indicates the port for which the bandwidth settings are displayed.
– LAG — Indicates the LAG for which the bandwidth settings are displayed.
• Ingress Rate Limit Status — Indicates the traffic limit for the port. The possible field values are:
– Enable — Rate Limit is enabled.
