Configuring Ports
Aggregating Ports
Page 67
Defining Port Trunking
The Port Trunking Page displays information about the defined trunks.
To modify Port Trunking settings:
1. Click Layer 1 > Port Trunking. The Trunk Settings Page opens:

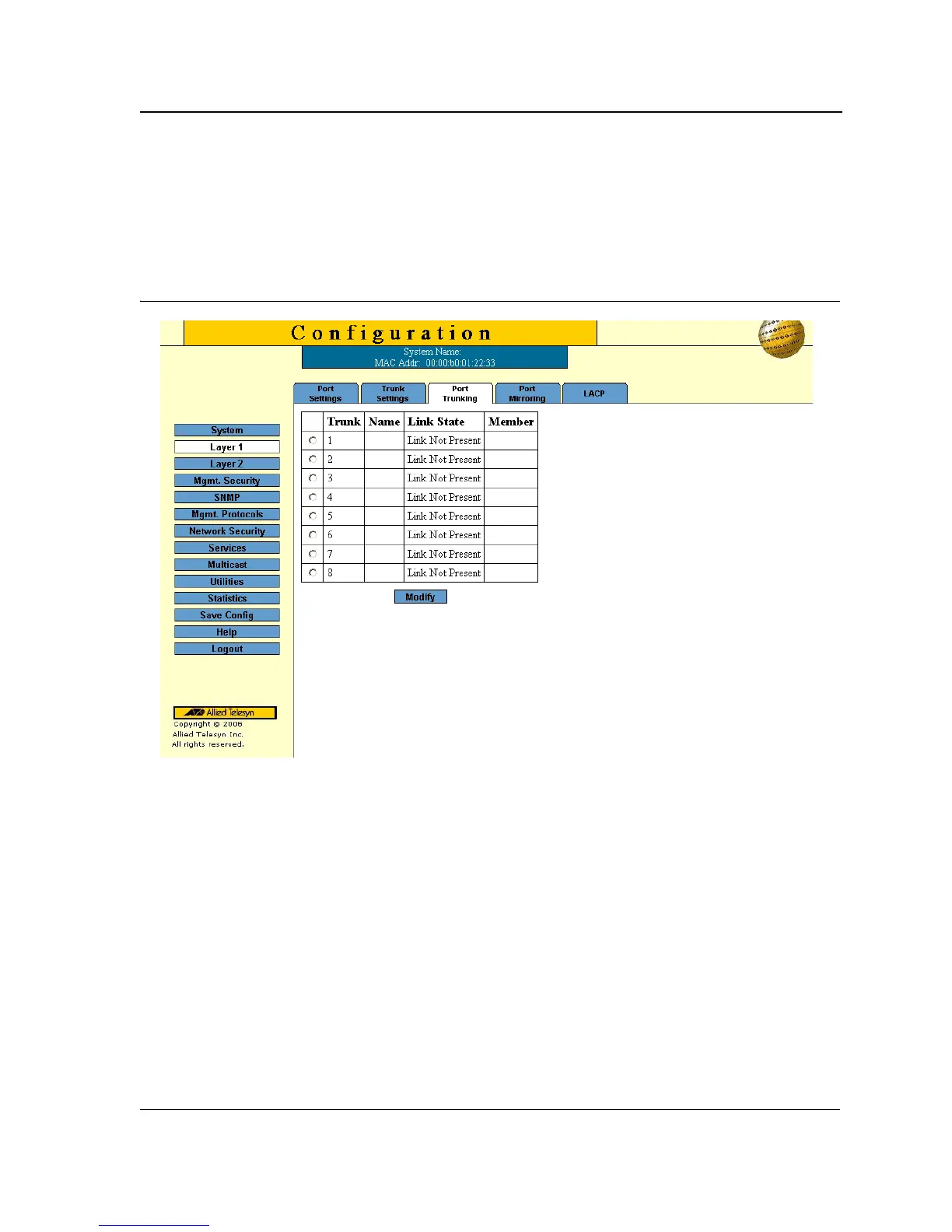

Figure 39: Port Trunking Page
The Port Trunking Page contains information about all port trunks currently defined on the device. The following
information is displayed:
• Trunk — Displays the ID number of the trunk.
• Name — Displays the name of the trunk. The name can be up to sixteen alphanumeric characters. No
spaces or special characters, such as asterisks and exclamation points, are allowed. Each trunk must be
given a unique name.
• Link State —Indicates the current link status.
• Members — Indicates the ports which are defined for the trunk.
2. Select the trunk to modify.
3. Click Modify. The Modify Trunk Page opens:
