Configuring Device Security
Configuring Network Security
Page 49
6. Click Save Config on the menu to save the changes permanently.
Defining 802.1x Port Access
The 802.1x Port Access Page allows enabling port access globally, defining the authentication method, and
configuration of port roles and settings.
To configure 802.1x port access parameters:
1. Click Network Security > 802.1x Port Access. The 802.1x Port Access Page opens:

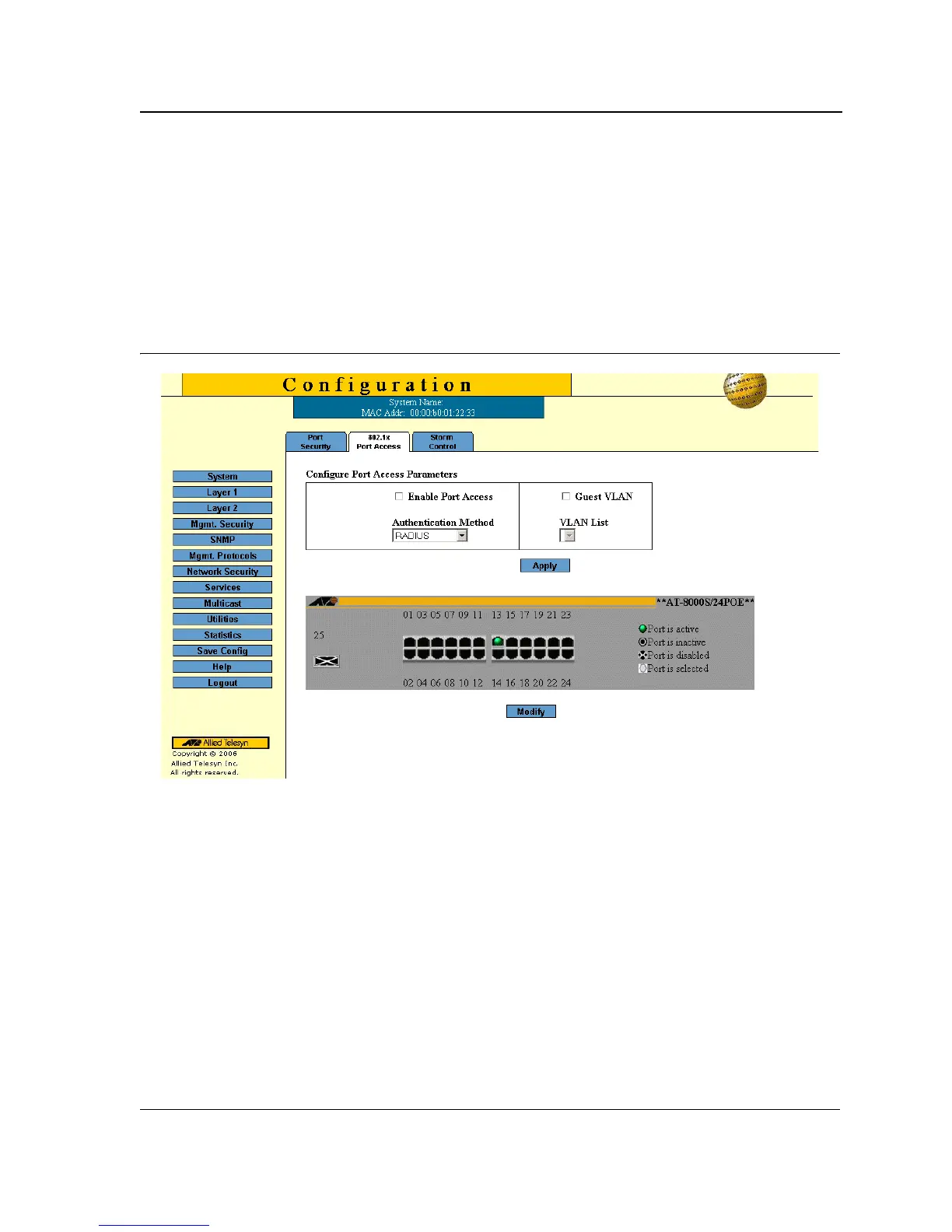

Figure 29: 802.1x Port Access Page
The 802.1x Port Access Page contains the following fields:
• Enable Port Access — Enables the 802.1x port access globally. The possible values are:
– Checked — Enables the 802.1x port access on the device.
– Unchecked — Disables the 802.1x port access on the device. This is the default value.
• Authentication Method — Displays the method by which the last session was authenticated. The possible
field values are:
– None — Indicates that no authentication method is used to authenticate the port.
– RADIUS — Provides port authentication using the RADIUS server.
– RADIUS, None — Provides port authentication, first using the RADIUS server. If the port is not
authenticated, then no authentication method is used, and the session is permitted.
• Guest VLAN —Provides limited network access to authorized ports. If a port is denied network access via
port-based authorization, but the Guest VLAN field is enabled, the port receives limited network access.
