Configuring Ports
Aggregating Ports
Page 69
Configuring LACP
LAG ports can contain different media types if the ports are operating at the same speed. Aggregated links can be
set up manually or automatically established by enabling Link Aggregation Control Protocol (LACP) on the
relevant links. Aggregate ports can be linked into link-aggregation port-groups. Each group is comprised of ports
with the same speed. The LACP Page contains fields for configuring LACP LAGs.
To configure LACP for LAGs:
1. Click Layer 1 > LACP. The LACP Page opens:

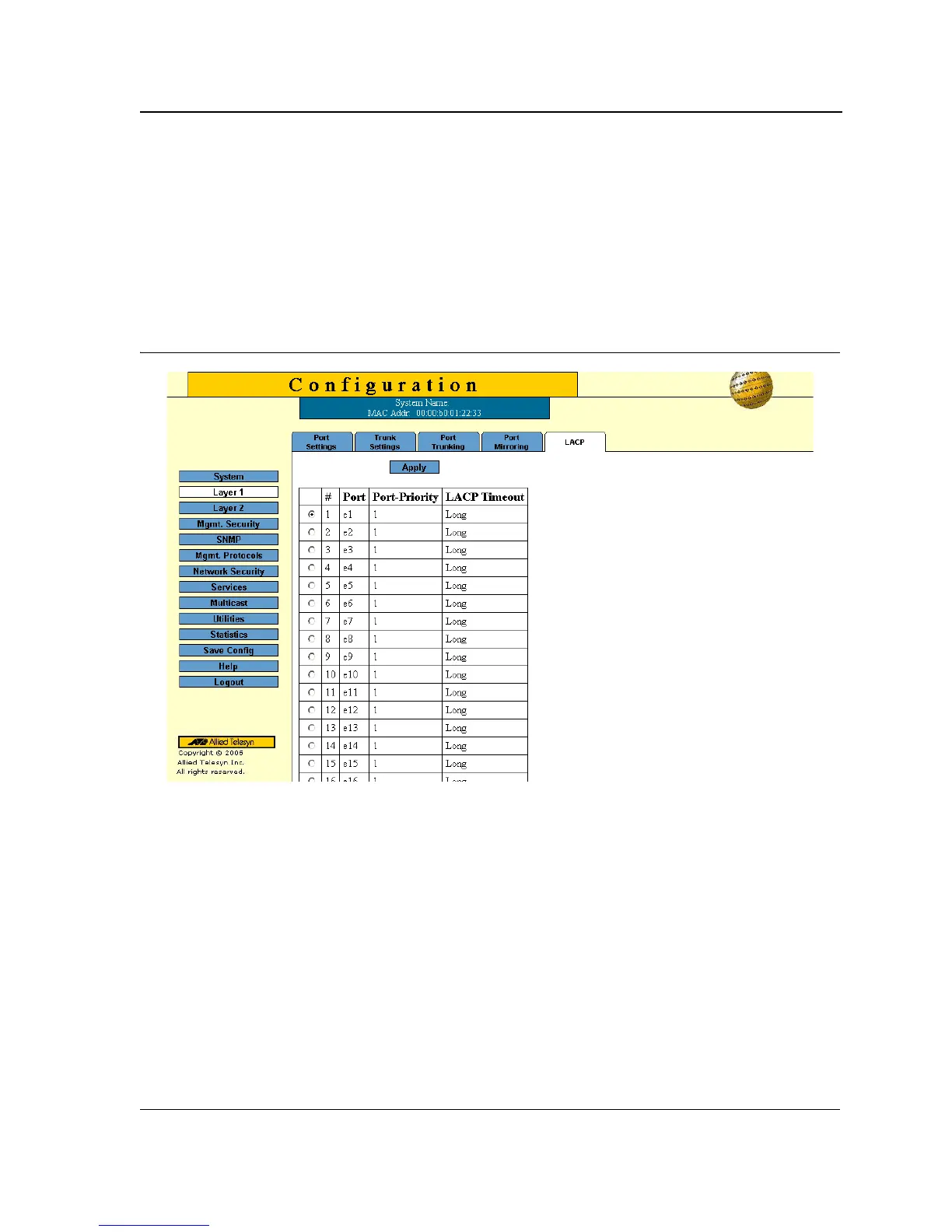

Figure 41: LACP Page
The LACP Page contains the following fields:
• LACP System Priority — Specifies system priority value. The field range is 1-65535. The field default is 1.
• Unit Number — Displays the stacking member for which the LAG parameters are defined.
• Port — Displays the port number to which timeout and priority values are assigned.
• Port Priority — Displays the LACP priority value for the port. The field range is 1-65535.
• LACP Timeout — Displays the administrative LACP timeout.
2. Click Modify. the Modify LACP Settings Page opens:
3. Define the fields.
4. Click Apply. The LACP settings are saved and the device is updated.
