Viewing Statistics
Managing RMON Statistics
Page 159
Viewing the RMON History Table
The RMON History Table Page contains interface specific statistical network samplings. Each table entry
represents all counter values compiled during a single sample.
To view the RMON History Table:
1. Click Statistics > RMON History. The RMON History Page opens.
2. Click View. The RMON History Table Page opens:

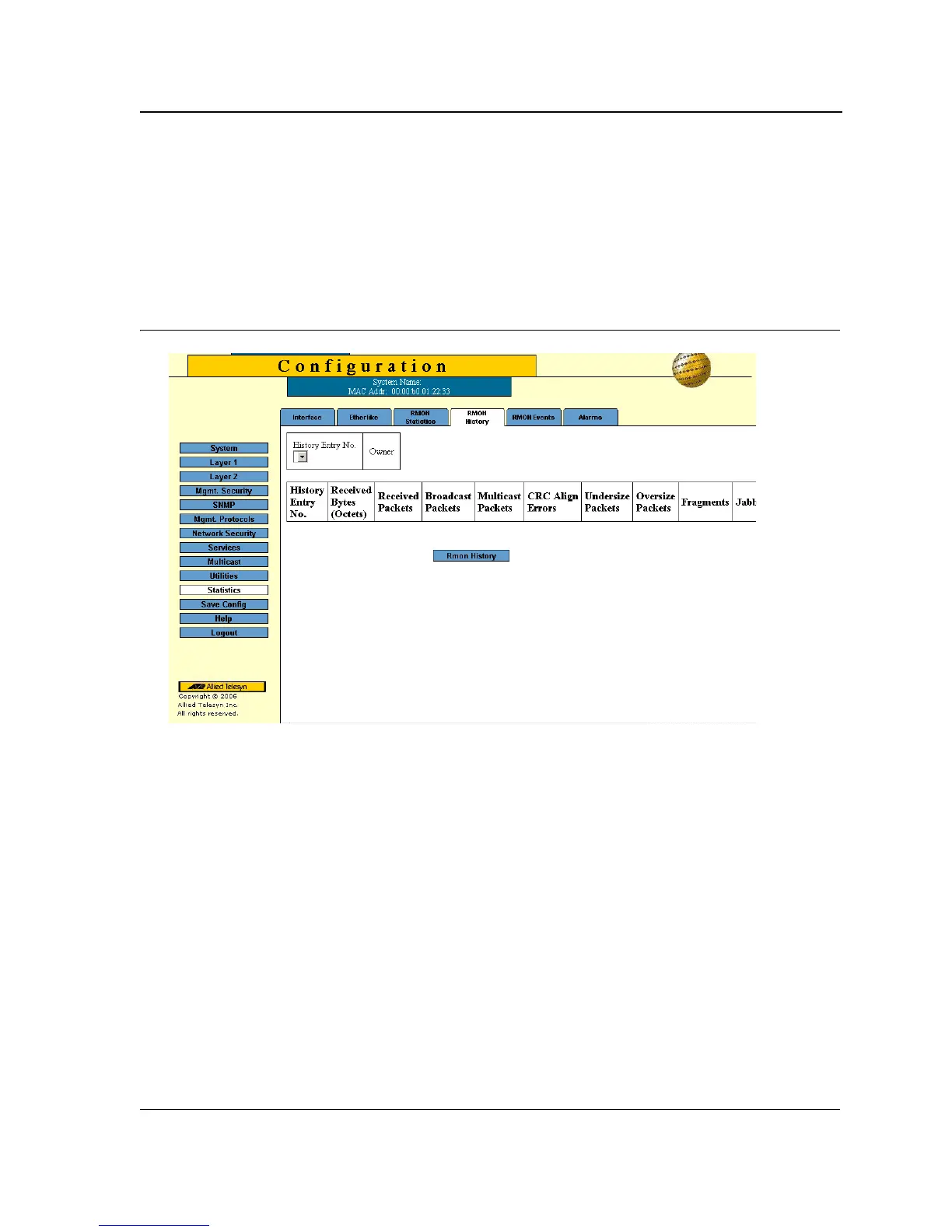

Figure 103:RMON History Table Page
The RMON History Table Page contains the following fields:
• History Entry No. — Displays the history table entry number.
• Owner — Displays the RMON station or user that requested the RMON information. The field range is 0-20
characters.
• Sample No. — Indicates the sample number from which the statistics were taken.
• Drop Events — Displays the number of dropped events that have occurred on the interface since the device
was last refreshed.
• Received Bytes (Octets) — Displays the number of octets received on the interface since the device was
last refreshed. This number includes bad packets and FCS octets, but excludes framing bits.
• Received Packets — Displays the number of packets received on the interface since the device was last
refreshed, including bad packets, Multicast and Broadcast packets.
• Broadcast Packets — Displays the number of good Broadcast packets received on the interface since the
device was last refreshed. This number does not include Multicast packets.
• Multicast Packets — Displays the number of good Multicast packets received on the interface since the
device was last refreshed.
• CRC Align Errors — Displays the number of CRC and Align errors that have occurred on the interface since
the device was last refreshed.
