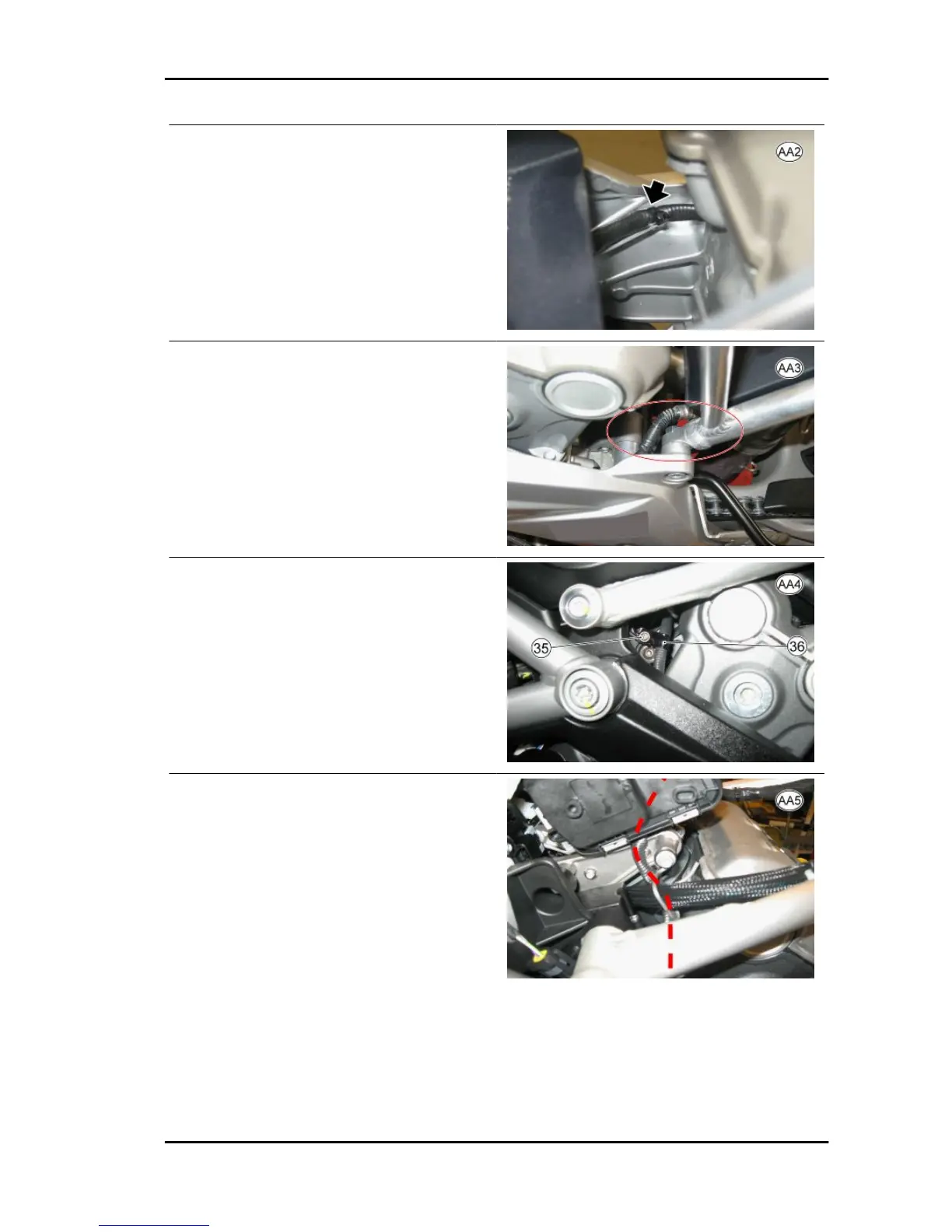

TABLE AA2

2.5x160 mm (0.01x6.30 in) Clamps

TABLE AA3

Lambda probe correct installation.

TABLE AA4

35. Screw

36. Cable grommet

TABLE AA5

Lambda probe cable arrangement.

DORSODURO 1200 ABS - ATC Electrical system

ELE SYS - 109
