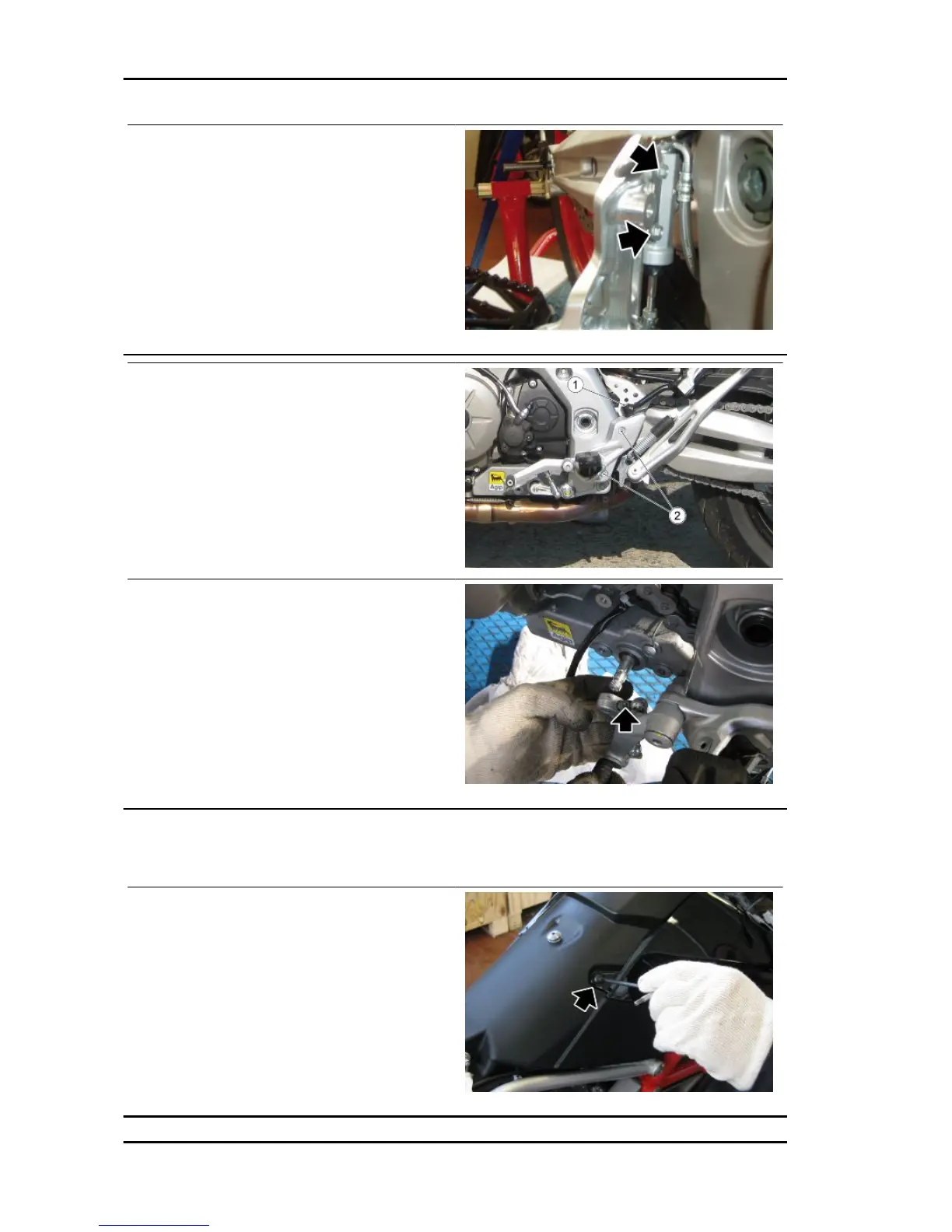

Remove the right footrest

•

Unscrew and remove both rear brake

pump internal fixing screws.

LEFT FOOTREST

•

Unscrew and remove the two external

screws.

•

Loosen the gear shift lever rod screw.

•

Slide off the gear shift lever rod.

•

Remove the left footrest.

Side body panels

•

Remove the saddle.

•

Unscrew and remove the rear screw.

Bodywork DORSODURO 1200 ABS - ATC

BODYW - 388
