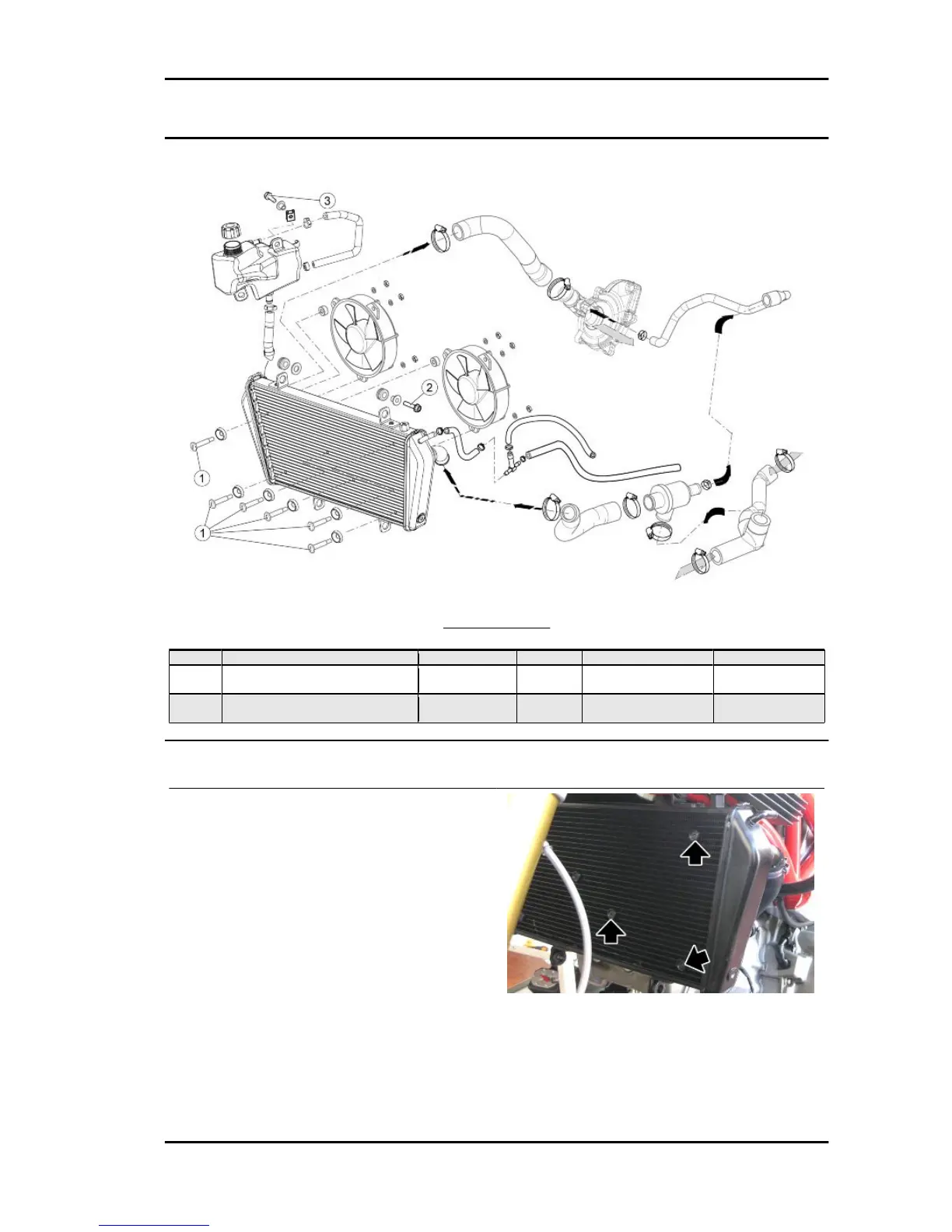

Circuit diagram

COOLING SYSTEM

pos. Description Type Quantity Torque Notes

1 Electric fan fastener screw M4x45 6 3 Nm (2.21 lbf ft) -

2 Flanged TE screw fastening left Ra-

diator to trellis

M6x25 1 10 Nm (7.37 lbf ft) -

3 Flanged TE screw fastening expan-

sion tank

M6x20 1 10 Nm (7.37 lbf ft) -

Electric fan

•

Remove the radiator

•

Tighten the three screws on radiator

front side.

DORSODURO 1200 ABS - ATC Cooling system

COOL SYS - 369
