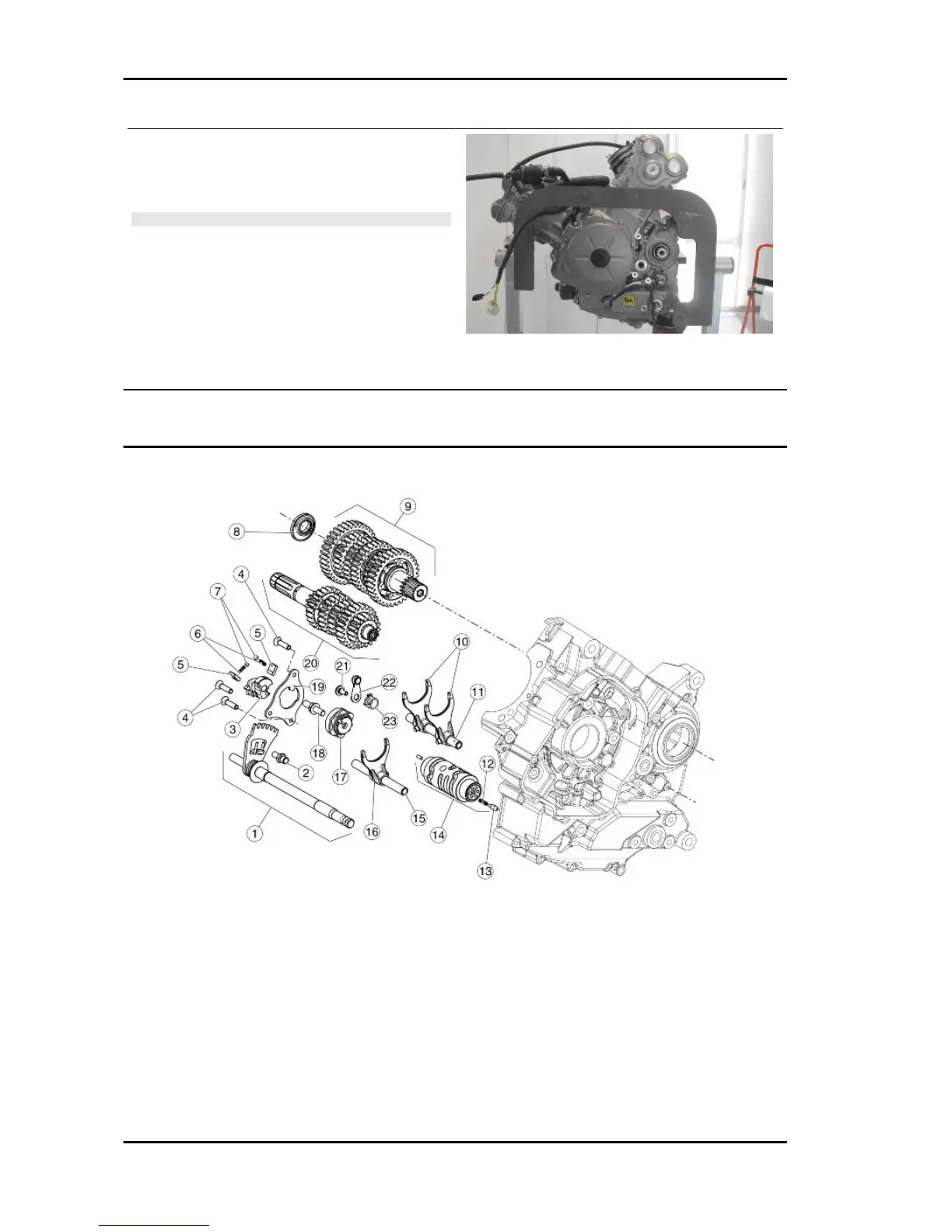

Use the special plate to duly support

the engine during the servicing opera-

tions.

CAUTION

TAKE PARTICULAR CARE TO ENSURE THAT THE EN-

GINE AND ENGINE MOUNTING ARE STABLE AND EN-

SURE THAT THE ENGINE IS SECURELY FASTENED TO

THE MOUNTING PLATE.

Specific tooling

020710Y Engine plate

AP8140187 Engine support stand

Gearbox

Diagram

Key

1. Complete gear shaft and spring

2. Selector lock

3. Selector sprocket wheel

4. M5x16 Screw

5. Sprocket wheel pawl

6. Spring

7. Pin for spring

Engine DORSODURO 1200 ABS - ATC

ENG - 210
