Fuel pump

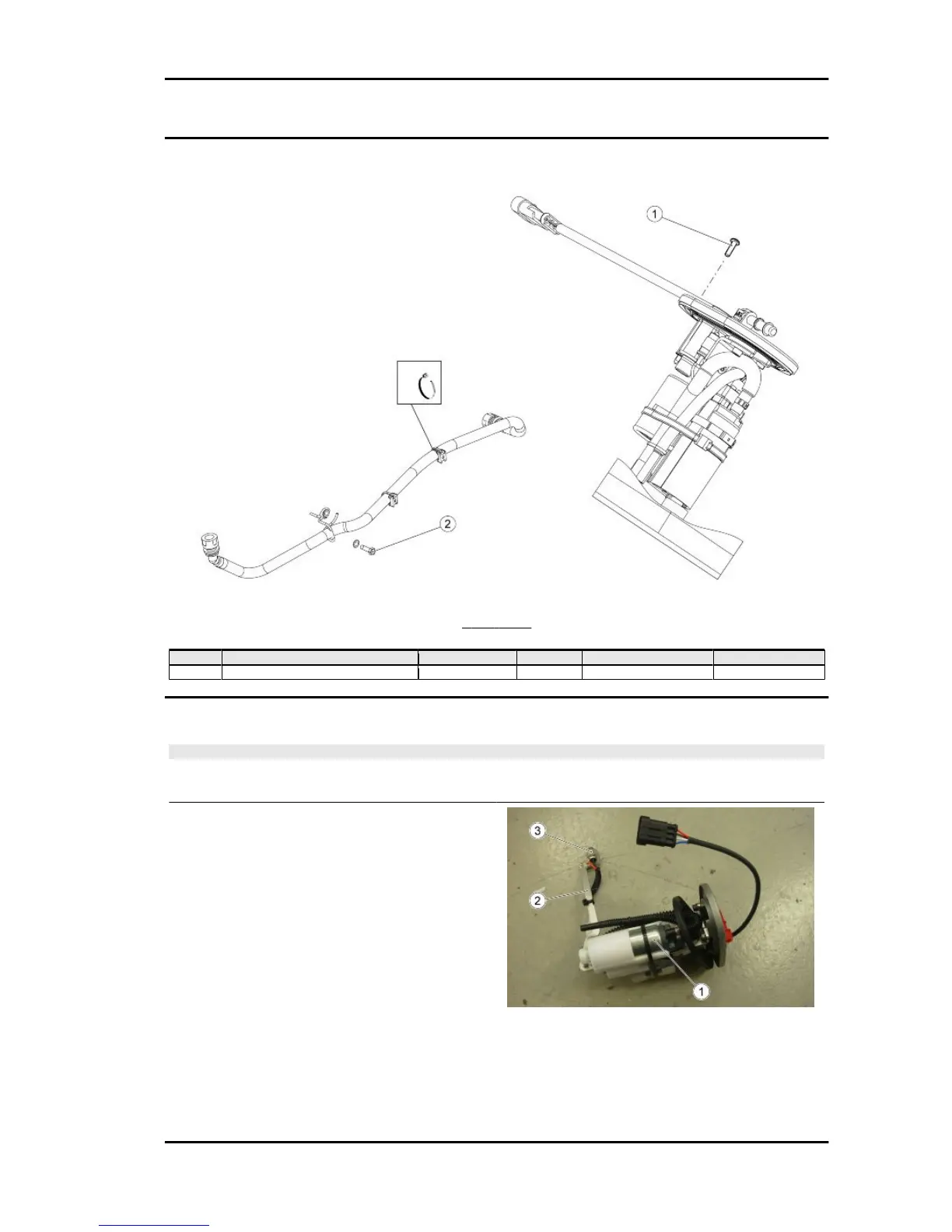

FUEL PUMP

pos. Description Type Quantity Torque Notes

1 TEFL screw fastening fuel pump M5x16 6 3 Nm (2.21 lbf ft) Loctite 518

2 TEFL screw fastening fuel pipe M6x16 1 10 Nm (7.37 lbf ft) -

Removing

CAUTION

PAY ATTENTION DURING THE REMOVAL AND INSTALLATION PHASES OF THE FUEL PUMP

SINCE TI COULD GET DAMAGED.

The fuel pump includes:

1. Fuel pump.

2. Fuel level probe bracket.

3. Fuel level probe.

DORSODURO 1200 ABS - ATC Power supply

P SUPP - 293
