pos. Description Type Quantity Torque Notes
2 TCEI screw fastening Pin to gearbox
lever and Gearbox Lever to knurled
shaft
M6x16 2 12 Nm (8.85 lbf ft) -
3 LH lock nut for ball joint M6 1 10 Nm (7.37 lbf ft) -
4 RH lock nut for ball joint M6 1 10 Nm (7.37 lbf ft) -
5 RH ball joint on gearbox control lever M6 1 10 Nm (7.37 lbf ft) -
6 Pinion protector fixing screw M6x12 2 10 Nm (7.37 lbf ft) -
7 LH ball joint on gearbox control lever M6 1 10 Nm (7.37 lbf ft) -
- Fastener for positive cable on engine - 1 10 Nm (7.37 lbf ft) -
- TE screw fastening negative cable to
engine
M6x12 1 10 Nm (7.37 lbf ft) -

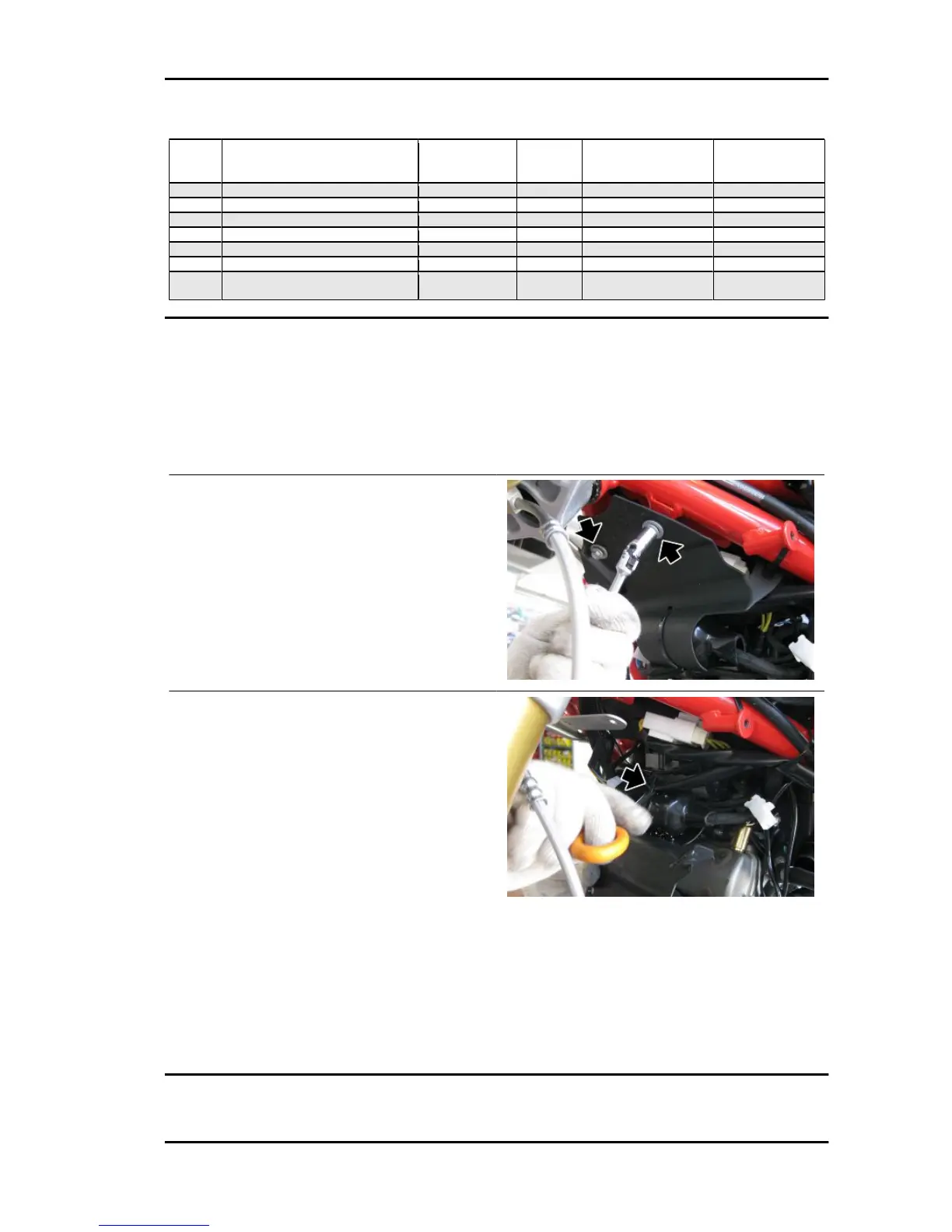

Vehicle preparation
•
Remove the battery.
•
Remove the fuel tank.
•
Remove the water radiator and oil radiator.
•
Remove the air filter box.
•
Unscrew and remove the two screws.
•
Cut the clamps and remove the chas-
sis cover.
See also
Fuel tank
Removing the
radiator
Engine oil
cooler
Air box
DORSODURO 1200 ABS - ATC Engine from vehicle
ENG VE - 195
