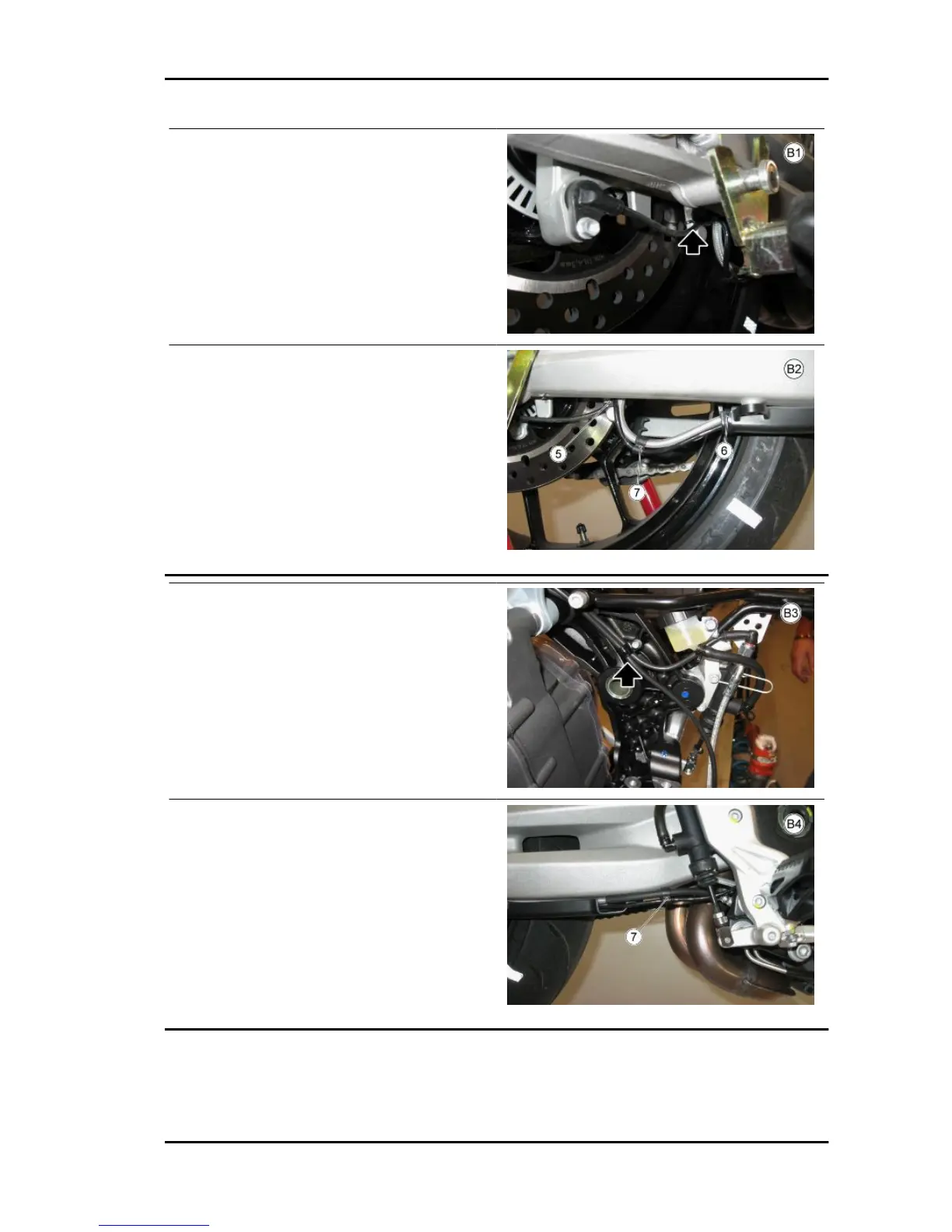

TABLES B - FRONT AND REAR WHEEL

SPEED / ABS SENSOR FITTING

TABLE B1

2.5x160 mm (0.01x6.30 in) Clamps

TABLE B2

4. 2.5x160 mm (0.01x6.30 in) Clamps

5. Cable grommet

4.5x180 mm (0.18x7.08 in) Clamps

TABLE B3

Cable guide

TABLE B4

5. Cable grommet

DORSODURO 1200 ABS - ATC Electrical system

ELE SYS - 111
