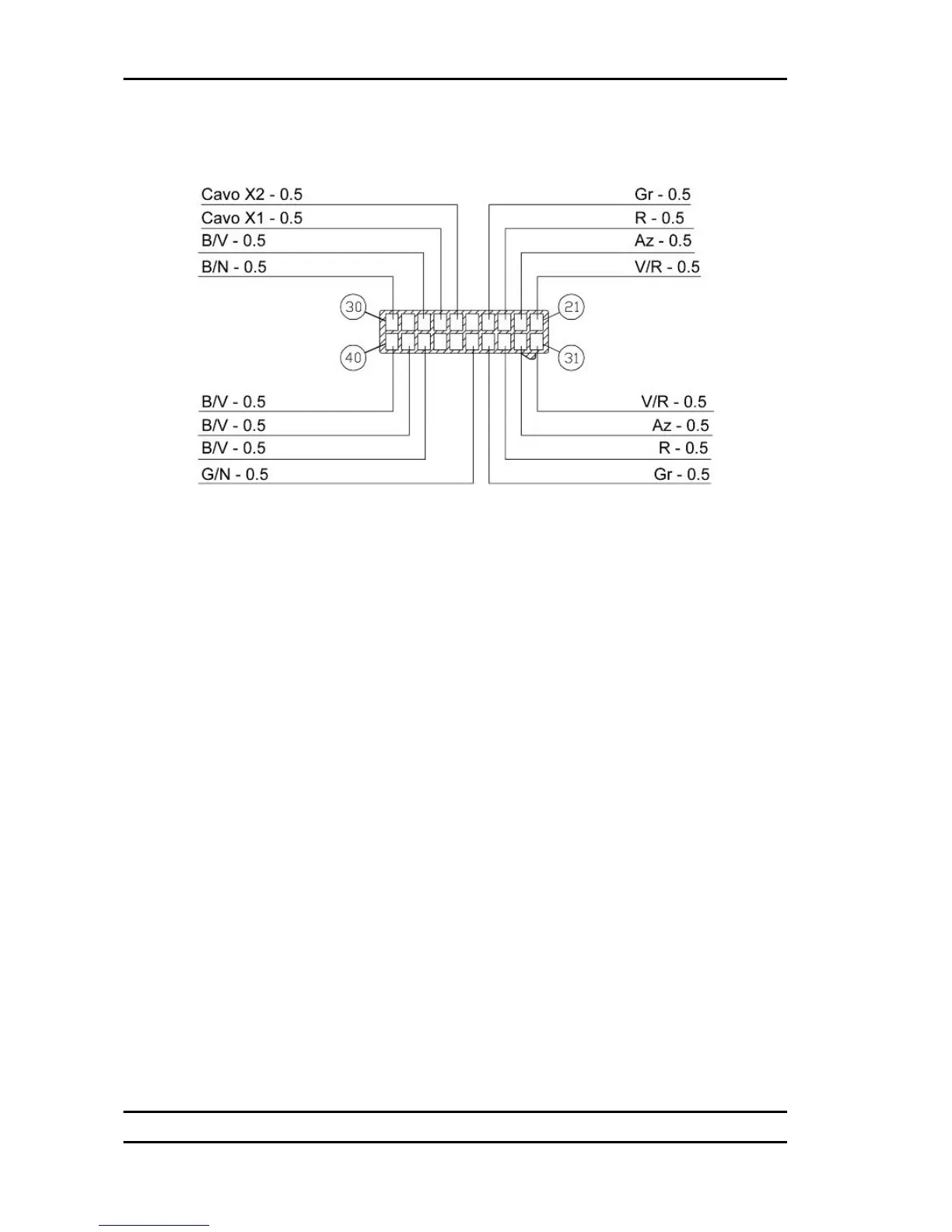

Black-bodied instrument panel pinout key:

21 +Battery

22 Front left turn indicator activation

23 Front right turn indicator activation

24 Aerial 2

25 Not used

26 CAN H

27 CAN L

28 ABS warning light input (if present)

29 Not used

30 Sensors ground connection

31 +Battery

32 Rear left turn indicator activation

33 Rear right turn indicator activation

34 Aerial 1

35 Low beam light relay activation

36 Not used

37 Not used

38 Ground connection

39 Ground connection

40 Ground connection

Electrical system DORSODURO 1200 ABS - ATC

ELE SYS - 188
