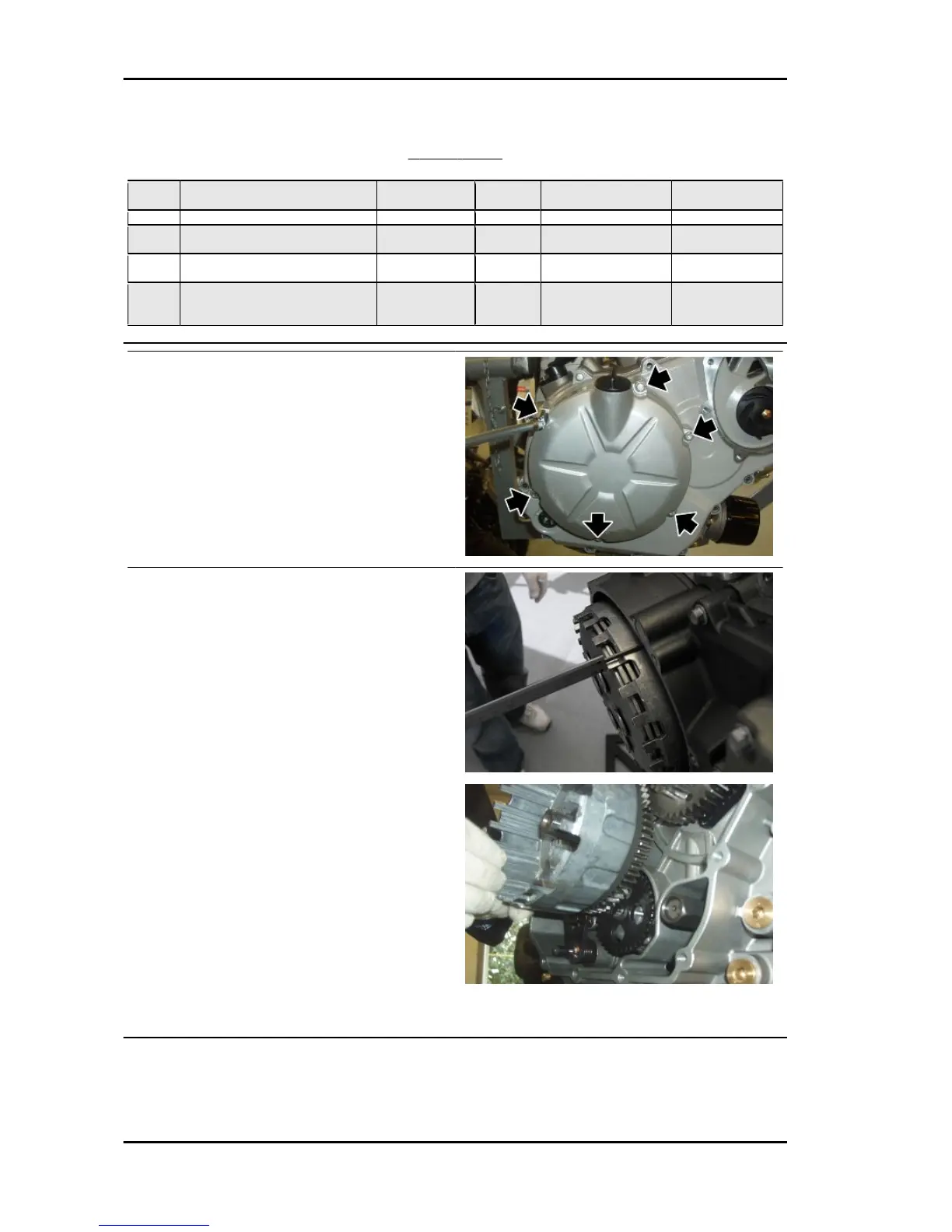

CLUTCH COVER
pos. Description Type Quantity Torque Notes
1 Screw fastening Clutch Cover / inter-
mediate Clutch side cover
M6 6 13 Nm (9.59 lbf ft) -
2 Clutch fastener nut M24x1 1 170 Nm (125.38 lbf ft) Chamfer
3 Fastening oil filler plug on Clutch cov-
er
- 1 2 Nm (1.48 lbf ft) -
4 Screw fastening fixing Plate / Clutch
control Mounting
M5 3 5.50 Nm (4.06 lbf ft) Loctite 242
5 Screw fastening clutch control
mounting on flywheel side crankcase
half
M6 2 13 Nm (9.59 lbf ft) -
•
Unscrew and remove the six perimeter
fastener screws.
•
Remove the clutch cover.
•
Remove the gasket
Removing the clutch cover alone is only recom-
mended when replacing the clutch plates. When
removing the entire clutch assembly, removing the
clutch side cover is recommended.
However, removing the entire clutch assembly is
possible by removing the clutch cover alone. In this
case, proceed as follows:
•
measure the projection of the clutch
housing from the crankcase before dis-
assembling;
•
when refitting, check that the projection
has not changed before tightening the
clutch nut. If the projection has
changed, rotate the crankshaft to cor-
rectly engage the engine oil pump drive
gear on the clutch housing with the oil
pump driven gear.
Engine DORSODURO 1200 ABS - ATC
ENG - 228
