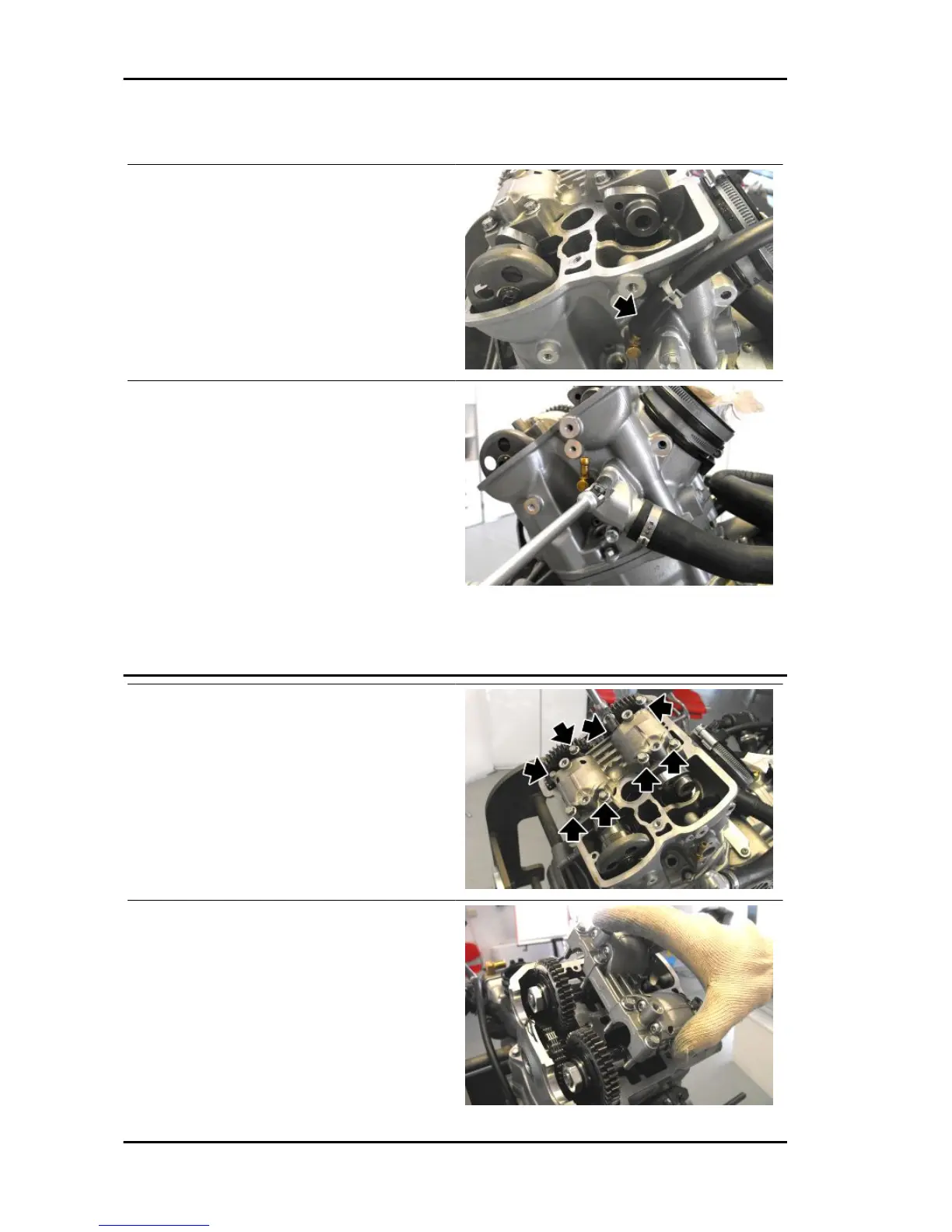

Removing camshafts

•

Remove the head cover.

•

Unscrew and remove the two screws.

•

Remove the coolant fitting.

See also

Head cover removal

•

Remove the cap from flywheel cover.

•

Rotate the crankshaft until the rear cyl-

inder piston reaches the TDC.

•

Unscrew and remove the eight cam

tower screws working in a diagonal se-

quence and in stages.

•

Remove the cam tower.

Engine DORSODURO 1200 ABS - ATC

ENG - 248
