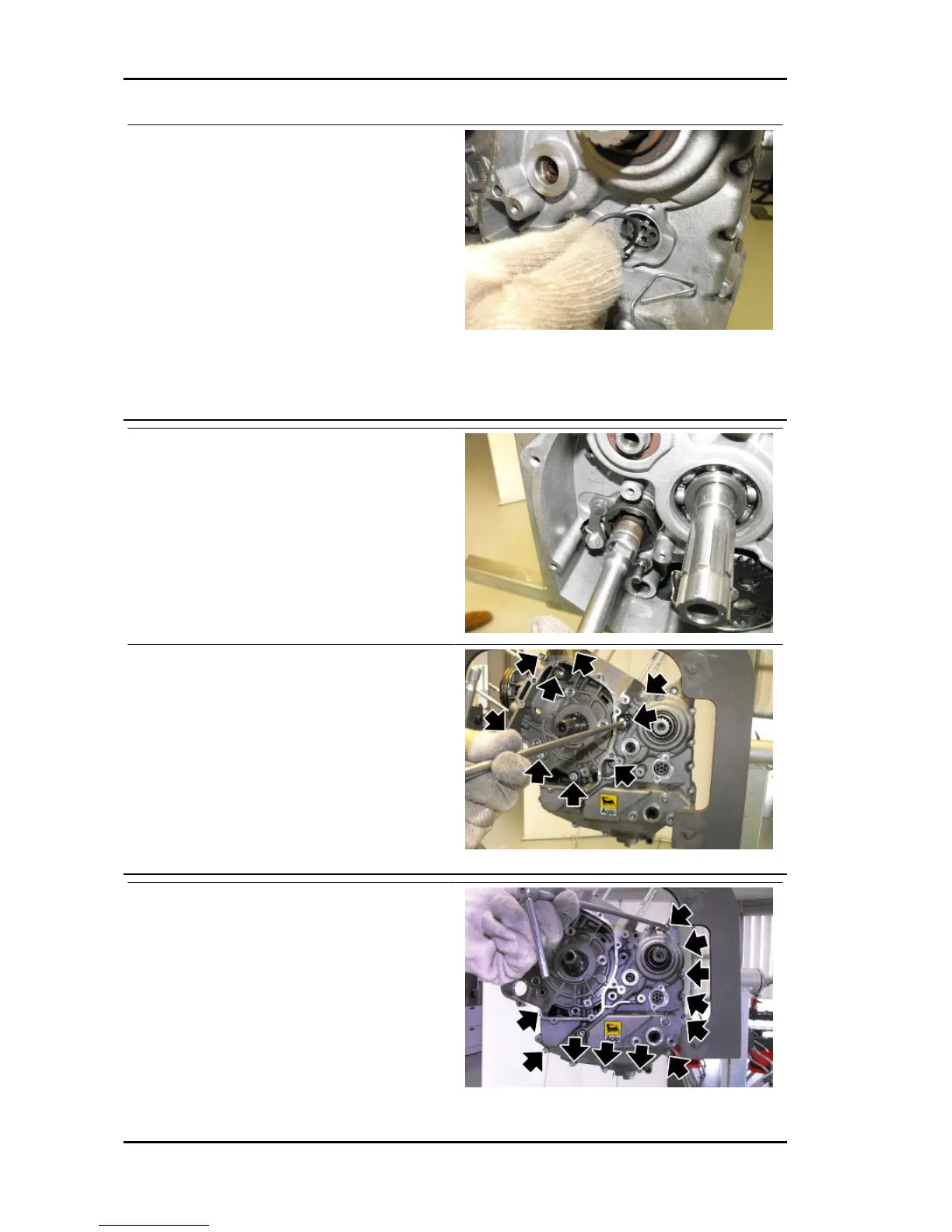

Collect the O-ring.

See also

Removing the

cylinder

•

Unscrew and remove the selector

drum fastener screw.

•

Unscrew and remove the nine flywheel

side M8 screws.

•

Unscrew and remove the eleven fly-

wheel side M6 screws.

•

Turn the engine into horizontal position.

Engine DORSODURO 1200 ABS - ATC

ENG - 274
