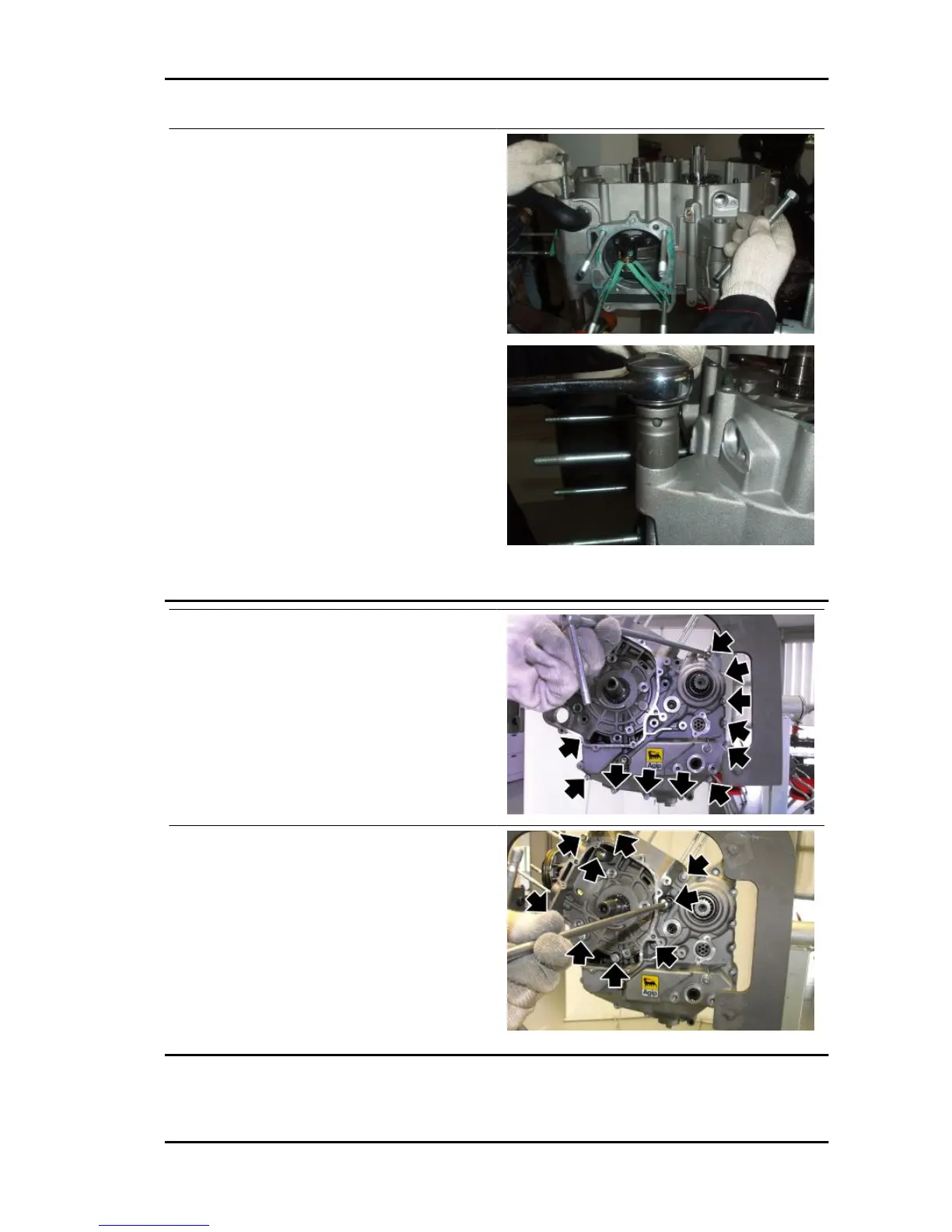

Tighten the two fixing pins.

•

Rotate the engine and the engine support into vertical position.

•

Working on the left side, place the elev-

en M6 screws fixing the crankcase.

•

Working on the left side, place the nine

M8 screws fixing the crankcase.

•

Tighten all the crankcase fixing

screws, both M6 and M8 type.

DORSODURO 1200 ABS - ATC Engine

ENG - 281
