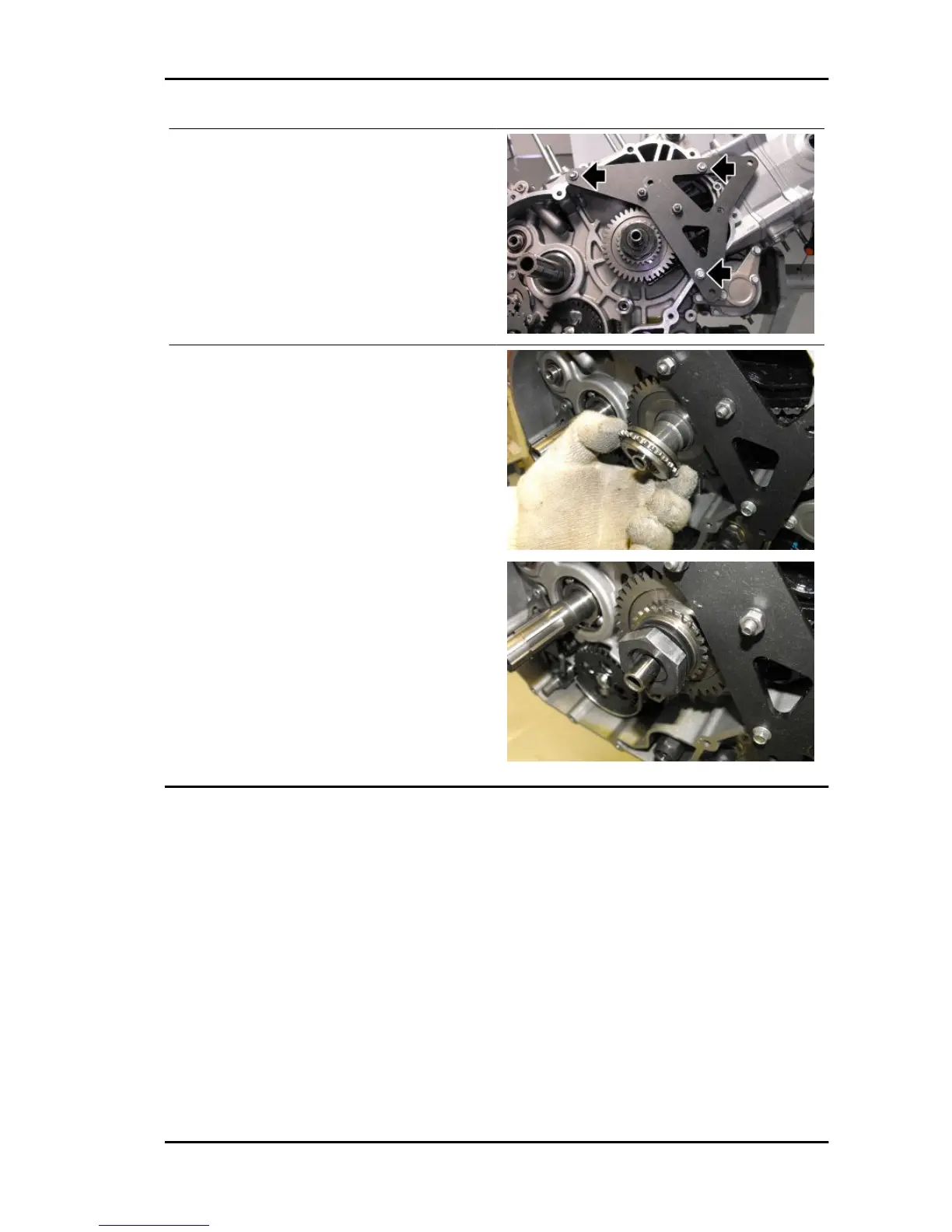

Fit the special tool, tightly fastening the

three screws securing the tool onto the

crankcase.

Specific tooling

020850Y Primary gear lock

•

Position the water pump drive gear, the

washer and crankshaft fastener nut

and tighten it to the specified torque.

DORSODURO 1200 ABS - ATC Engine

ENG - 283
