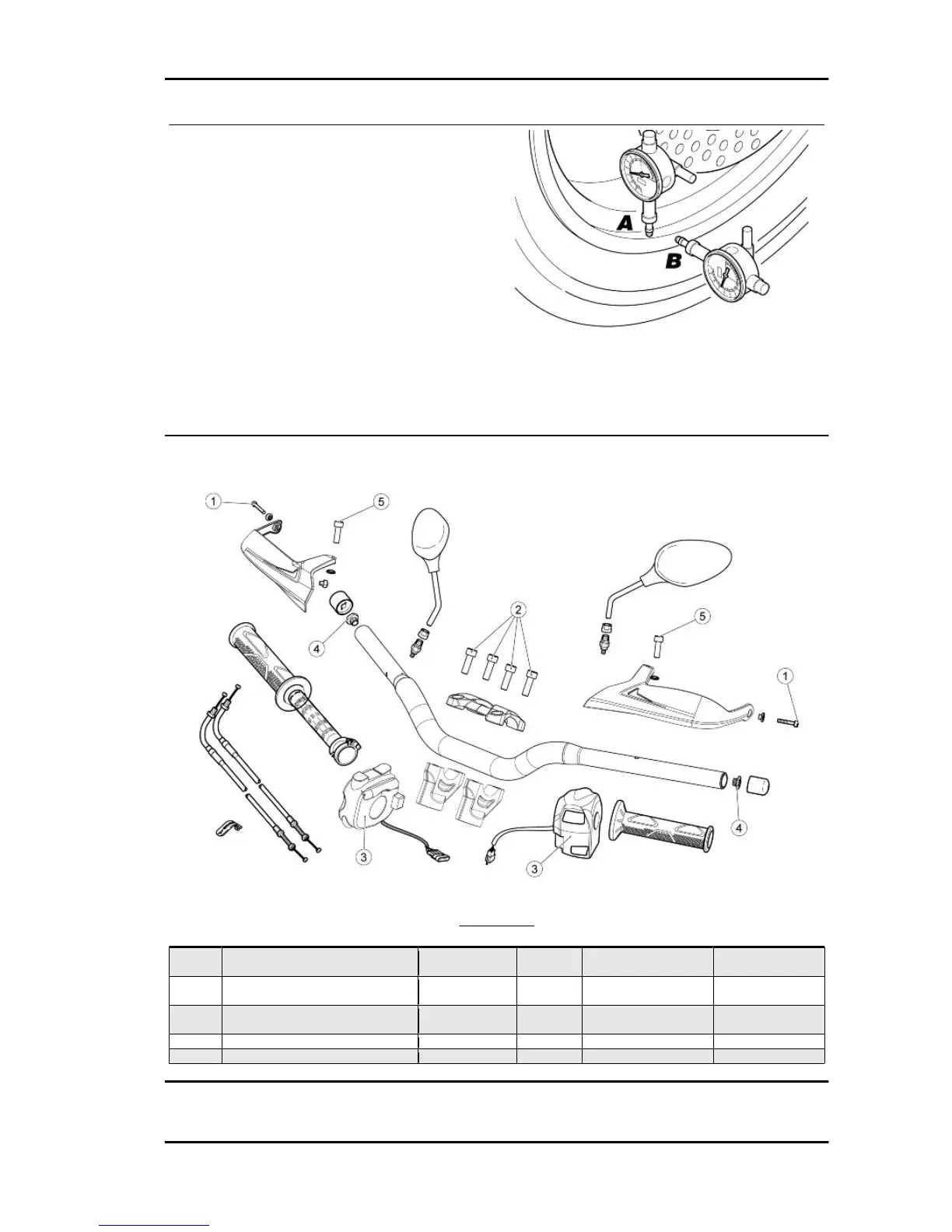

Using a dial gauge, check that the ra-
dial (A) and the axial (B) eccentricities
of the rim do not exceed the limit value.
An excessive eccentricity is usually
caused by worn or damaged bearings.
Replace the rim if, after replacing the
bearings, the value is not within the
specified limit.
Characteristic
Maximum radial and axial eccentricity:
2 mm (0.0079 in)
Handlebar
HANDLEBAR
pos. Description Type Quantity Torque Notes
1 TCEI screw fastening counterweight
to handlebar end
M6x50 2 10 Nm (7.37 lbf ft) -
2 Stainless steel TCC screw fastening
upper U-bolt to lower clamp
M8x25 4 25 Nm (18.44 lbf ft) -
3 Screws fastening light switch assem-
bly
- 2 + 2 1.5 Nm (1.11 lbf ft) -
4 Anti-vibration weight terminal M18 2 20 Nm (14.75 lbf ft) -
5 TBEI screw M6x16 2 12 Nm (8.85 lbf ft) -
DORSODURO 1200 ABS - ATC Suspensions
SUSP - 305
