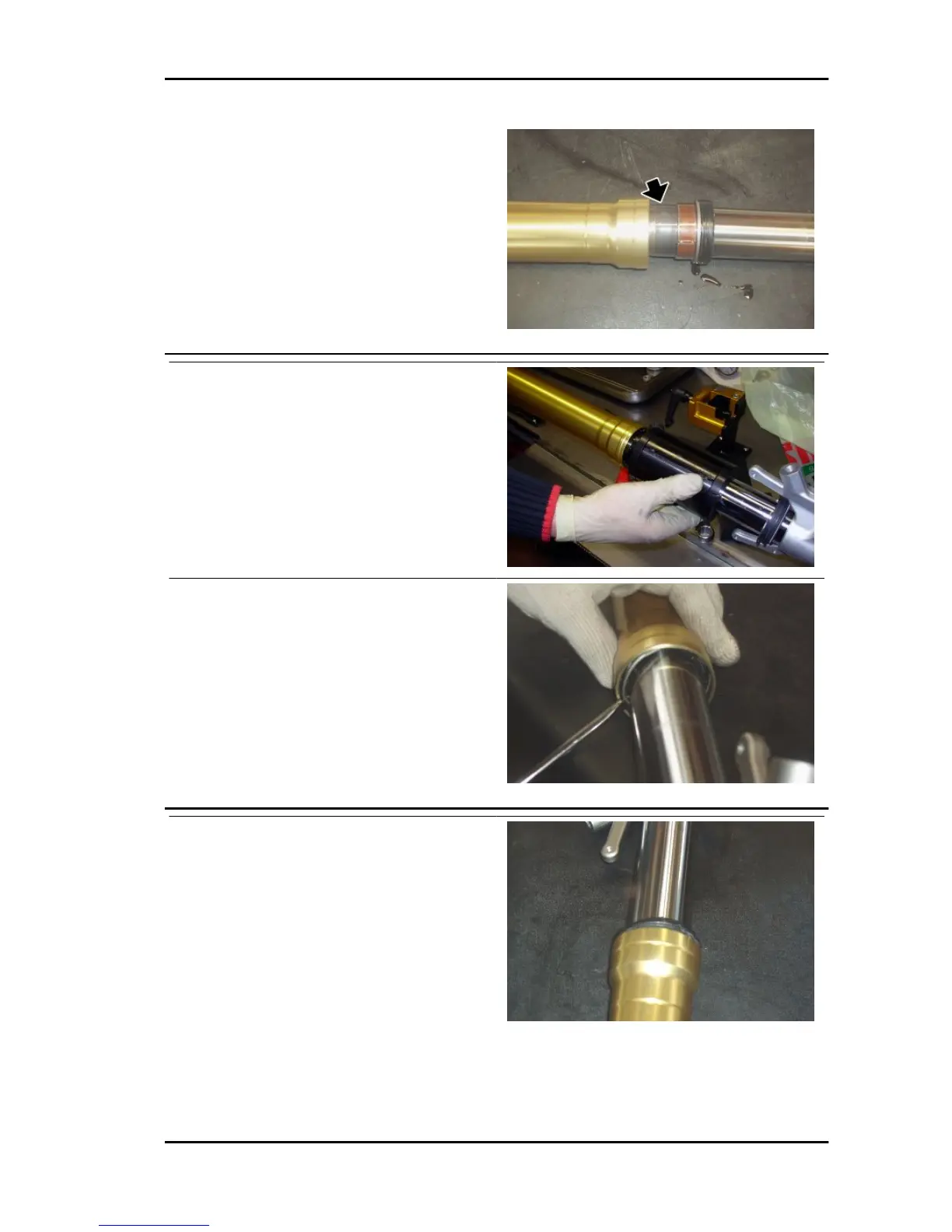

Fit the sleeve on the stem and set the

oil seal into position with the aid of the

specific tool.

Specific tooling

AP8140189 Oil seal fitting tool for Ø 43 mm

(1.69 in) orifices

AP8140146 Weight

•

Insert the retainer ring in its position.

•

Fit the dust gaiter with the specific tool.

Specific tooling

AP8140189 Oil seal fitting tool for Ø 43 mm

(1.69 in) orifices

AP8140146 Weight

DORSODURO 1200 ABS - ATC Suspensions

SUSP - 315
