Slide off the sleeve and empty the sys-
tem completely.

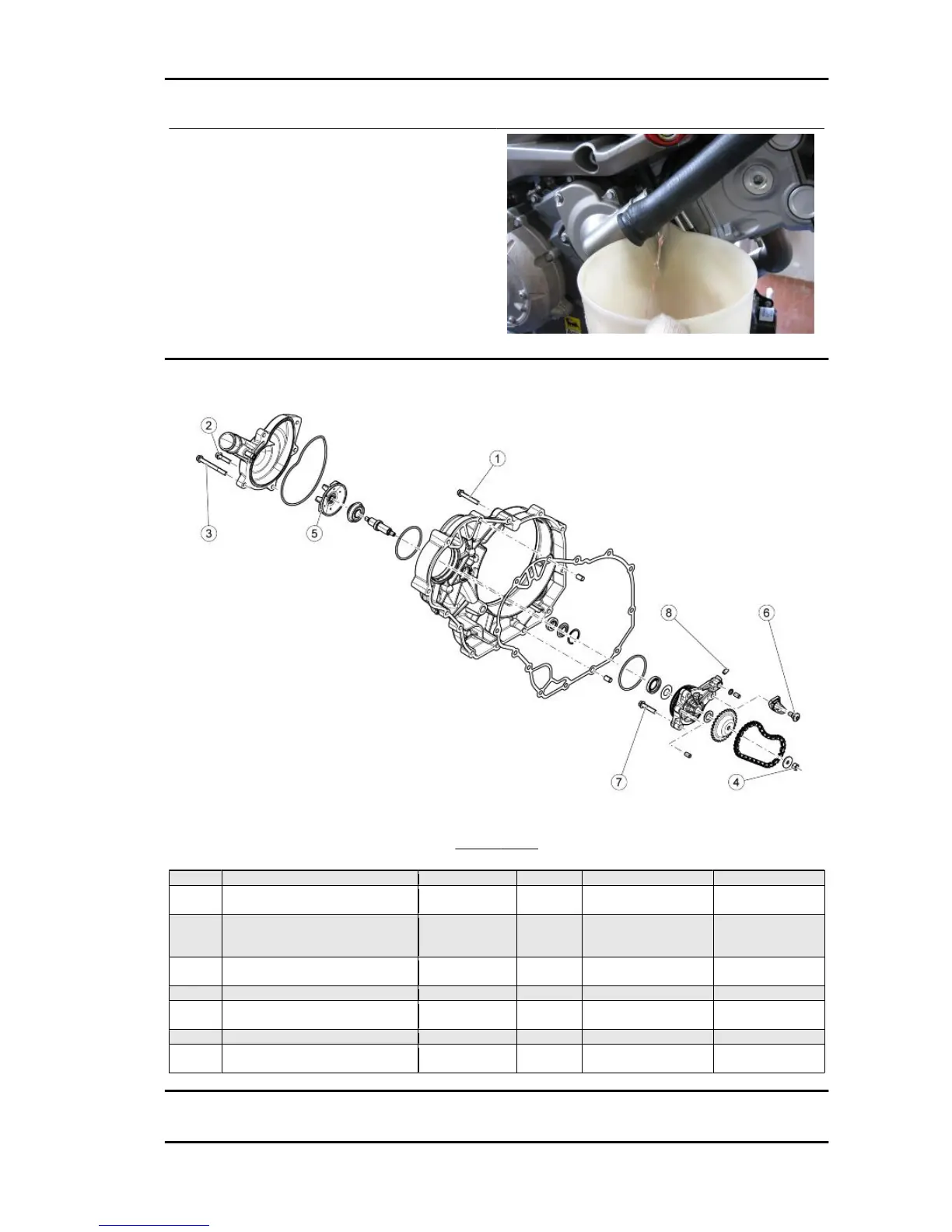

Water pump
WATER PUMP
pos. Description Type Quantity Torque Notes
1 Clutch side cover fastener screw M6 11 13 Nm (9.59 lbf ft) -
2 Fastener screw for Pump Cover /
Clutch side cover
M6 3 13 Nm (9.59 lbf ft) -
3 Screw fastening Pump Cover /
Clutch Cover / clutch side crankcase
half
M6 2 13 Nm (9.59 lbf ft) -
4 Nut fastening water pump drive gear
sprocket
M6 1 12 Nm (8.85 lbf ft) -
5 Water pump rotor - 1 4.50 Nm (3.32 lbf ft) -
6 Screw fastening chain tensioner slid-
er to water pump
M6 1 6 Nm (4.42 lbf ft) -
7 Water pump support fixing screw M6 3 12 Nm (8.85 lbf ft) -
8 Water pump support plug M6x10 1 6.5 Nm (4.79 lbf ft) 3M SCOTCH GRIP
2353
DORSODURO 1200 ABS - ATC Cooling system
COOL SYS - 371
