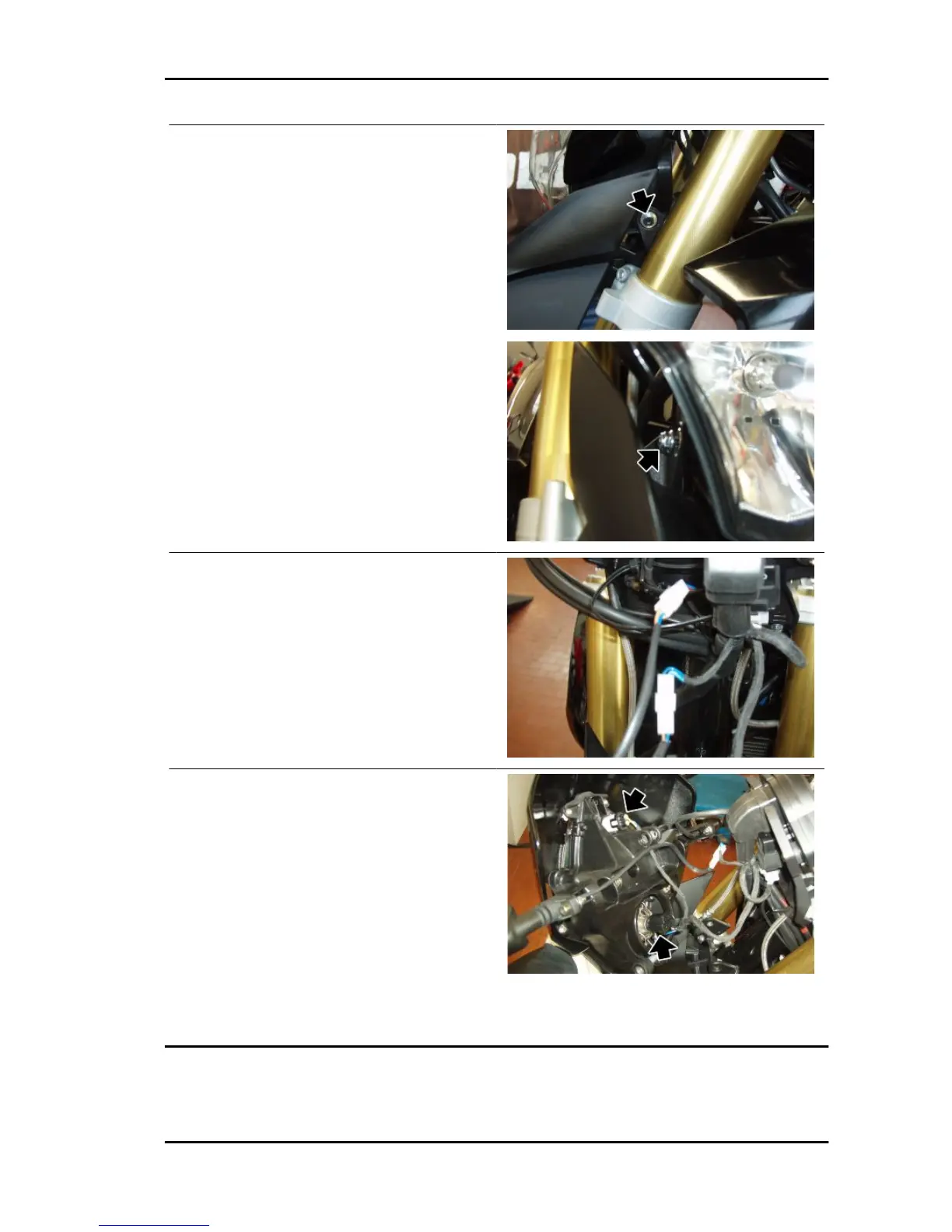

Remove the instrument panel.

•

Working from the vehicle left side, un-

screw and remove the pin, and collect

the nut and the washer from the right

side.

•

Disconnect the front turn indicator ca-

ble harness.

•

Disconnect the headlamp connector

and remove the headlamp assembly.
