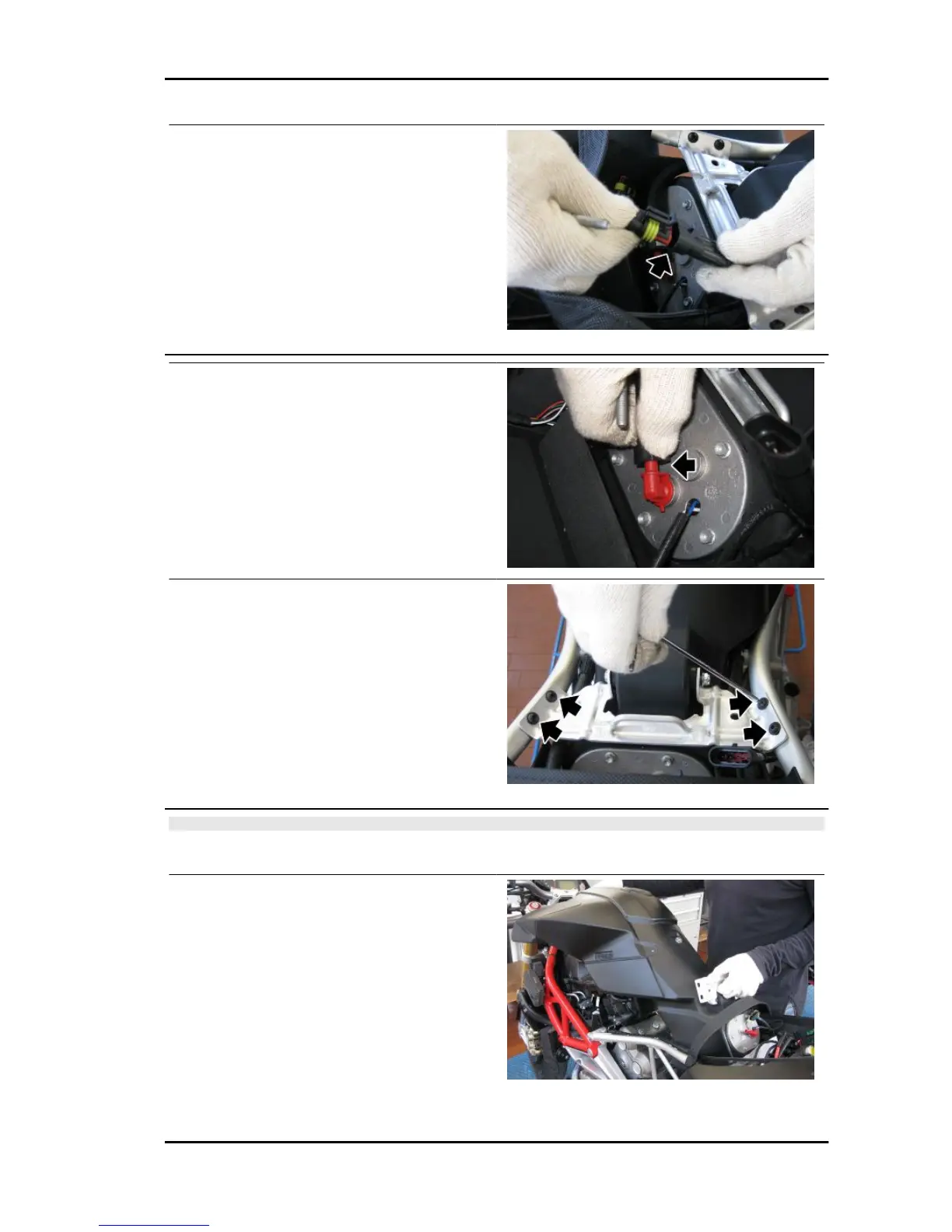

Disconnect the fuel pump connector.

•

Disconnect the fuel pipe.

•

Unscrew and remove the four lower

support screws.

CAUTION

DURING FUEL TANK LIFTING AND REPOSITIONING, BE CAREFUL SO AS NOT TO CRUSH/

BEND OR SLIDE OFF TANK BREATHERS FROM THE CORRESPONDING TUBE-GUIDES

•

Lift the fuel tank.

DORSODURO 1200 ABS - ATC Bodywork

BODYW - 395
