8. In the Event of Faults
8.1 Indications in the Event of Faults

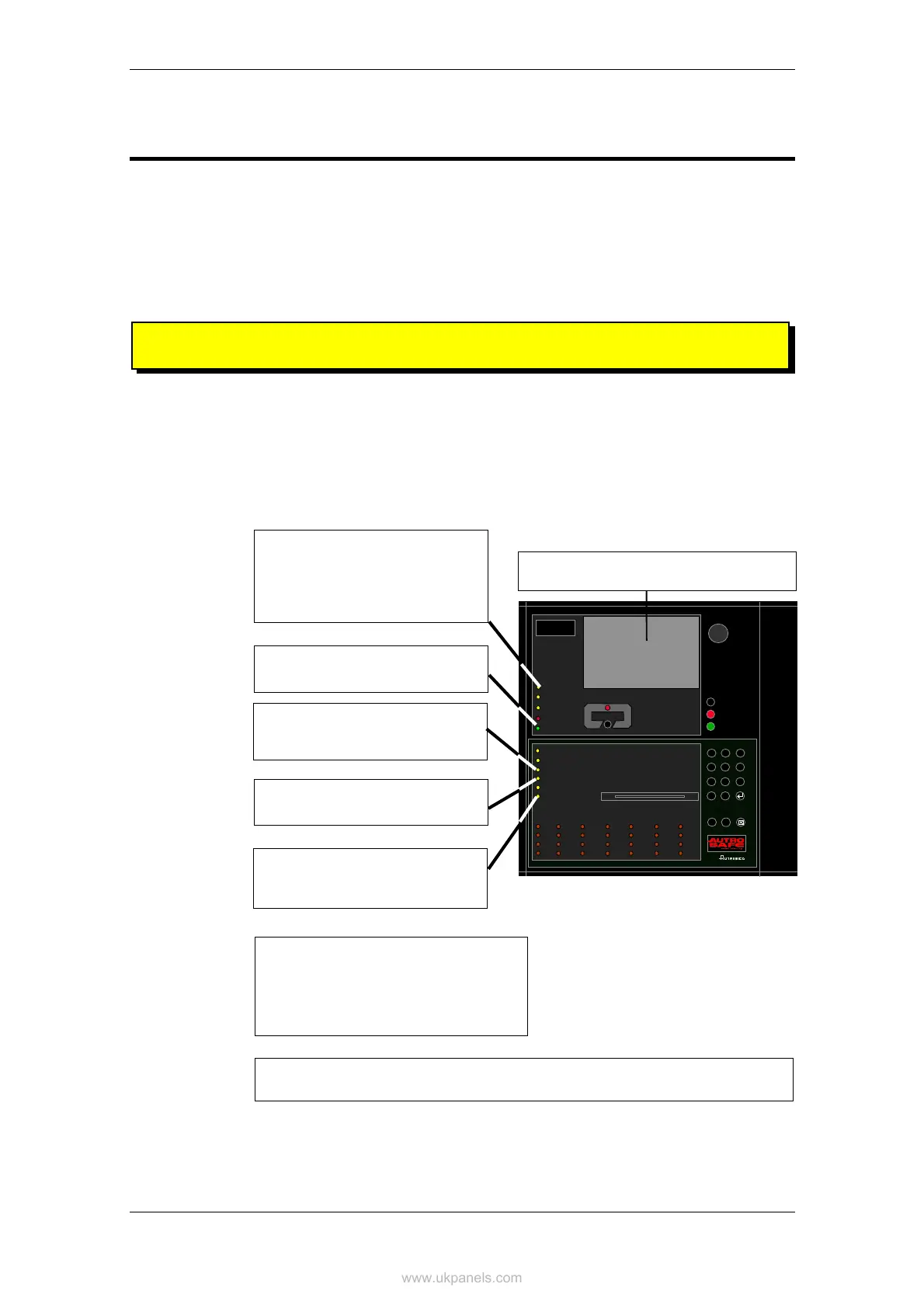

The following shows the indications on the Operator Panel in the event
of Faults within the operation zone of the panel.
•
Blinking light
Unaccepted fault warnings
exist.
•
Steady light
All fault warnings are accepted.
The internal buzzer is activated.
Default pattern on the sound:
System: constantly ON.
Fault: 0,5 sec. ON, 3,5 sec. OFF
Power Fault: 0,75 sec. ON, 3,25 sec. OFF
The text display indicates the nature of the
fault.
Activated functions:
- The output line from the control and indication equipment is activated.
A fault is indicated by one of the components (fire detectors, external equipment or
other faults).
Yellow light on Fire Brig. Fault
indicator if a fault is detected on Fire
Alarm Routing Equipment.
The yellow System Fault indicator is
steady if a system fault occurs.
Yellow light on Alarms Fault
indicator if a fault is detected on one
or more Fire Alarm Devices.
The green Power indicator is turned
off in case of loss of power.
