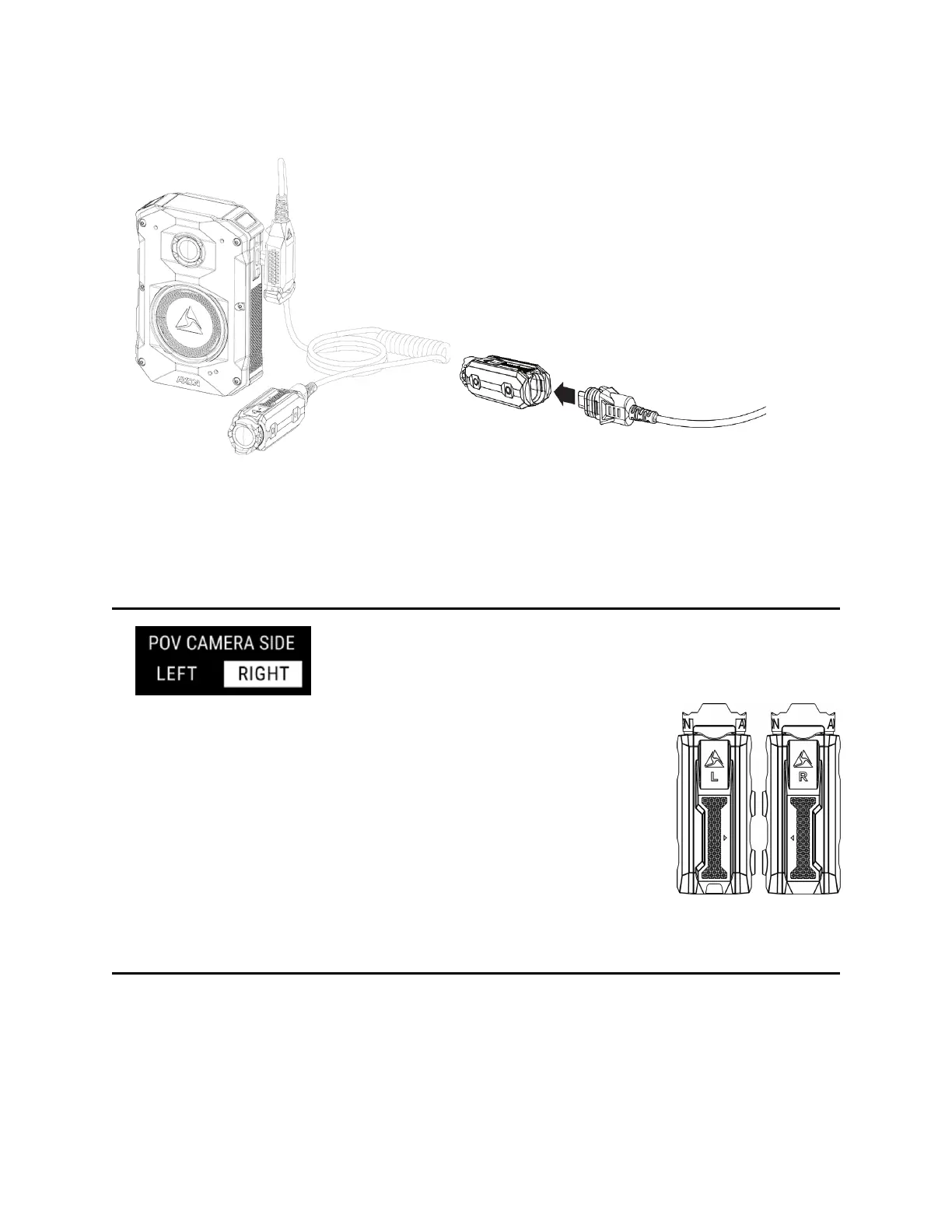

Unlock the POV latching mechanism and insert the camera's connector into the
connector port with the cable pointing up as shown, then lock it in place by pushing up
on the locking mechanism until it’s flush with the rest of the connector.
These cables are specifically calibrated to work with the Body 4 system. Use of
unapproved cables will degrade system performance and may cause the system to
malfunction.
Connect
When you connect a Flex POV module to a camera for the first
time, it will prompt you to set the POV orientation to be either
Left or Right.
Determine the orientation of the POV
module using the letter on the top of the POV module when
mounted.
Once set, update orientation using the camera menu: double-
press Select and choose POV Orientation. Orientation can also
be set from the Axon View mobile app.
Use the module
When the Axon Flex POV Module is attached to the body camera, Body 4 will use the
POV video sensor instead of the body camera’s.
l
If the POV module is attached while buffering, the view will automatically switch
from the body camera to the POV module.
Axon Enterprise, Inc. 31
Body 4 Camera User Guide
