Device settings DTA 100 C
38 / 90 822-129-8
8.5.3 Setting the electrode shape
Main menu > Device settings > ... > Electrode shape
1. In the main menu, select the menu item Device settings.
2. Select the menu item Next to confirm the selection.
3. In the Device settings menu, select the IEC 60156:2018 settings menu item and then
Next.
4. Select Electrode shape menu item.
5. Select menu item Change.

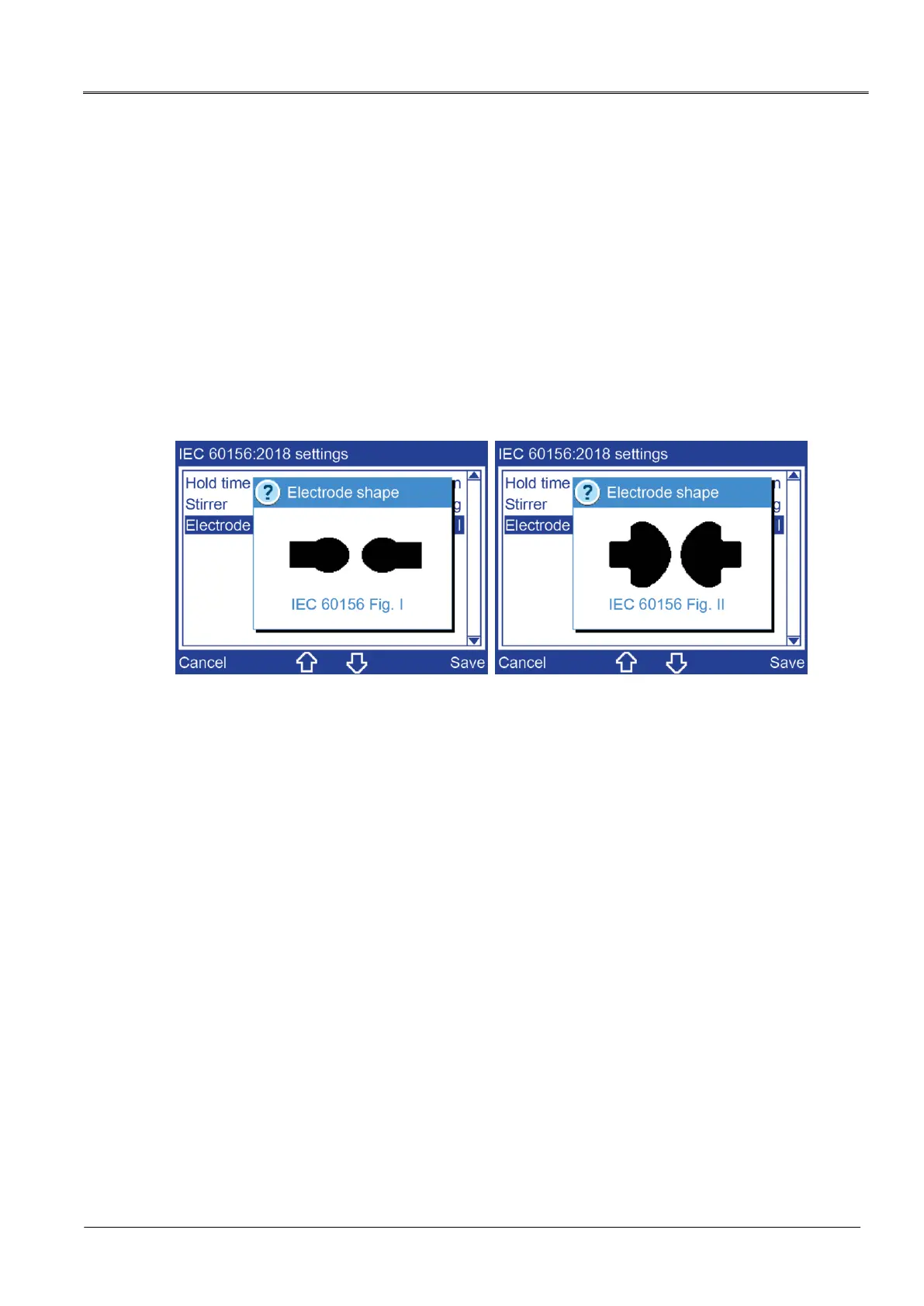

A prompt to select an electrode shape appears on the display.
6. Choose one of the following settings by pressing the arrow keys:
 IEC 60156 Fig. I: Ball-shaped electrodes according to IEC 60156 Fig. I
 IEC 60156 Fig. II: Mushroom-shaped electrodes according to IEC 60156 Fig. II
7. Choose an electrode shape by pressing the arrow keys.
8. Click Save to confirm the entry.
