User-defined meas
urem
ent
DTA 100
C
58
/
90
822
-
129
-8
11.1.10

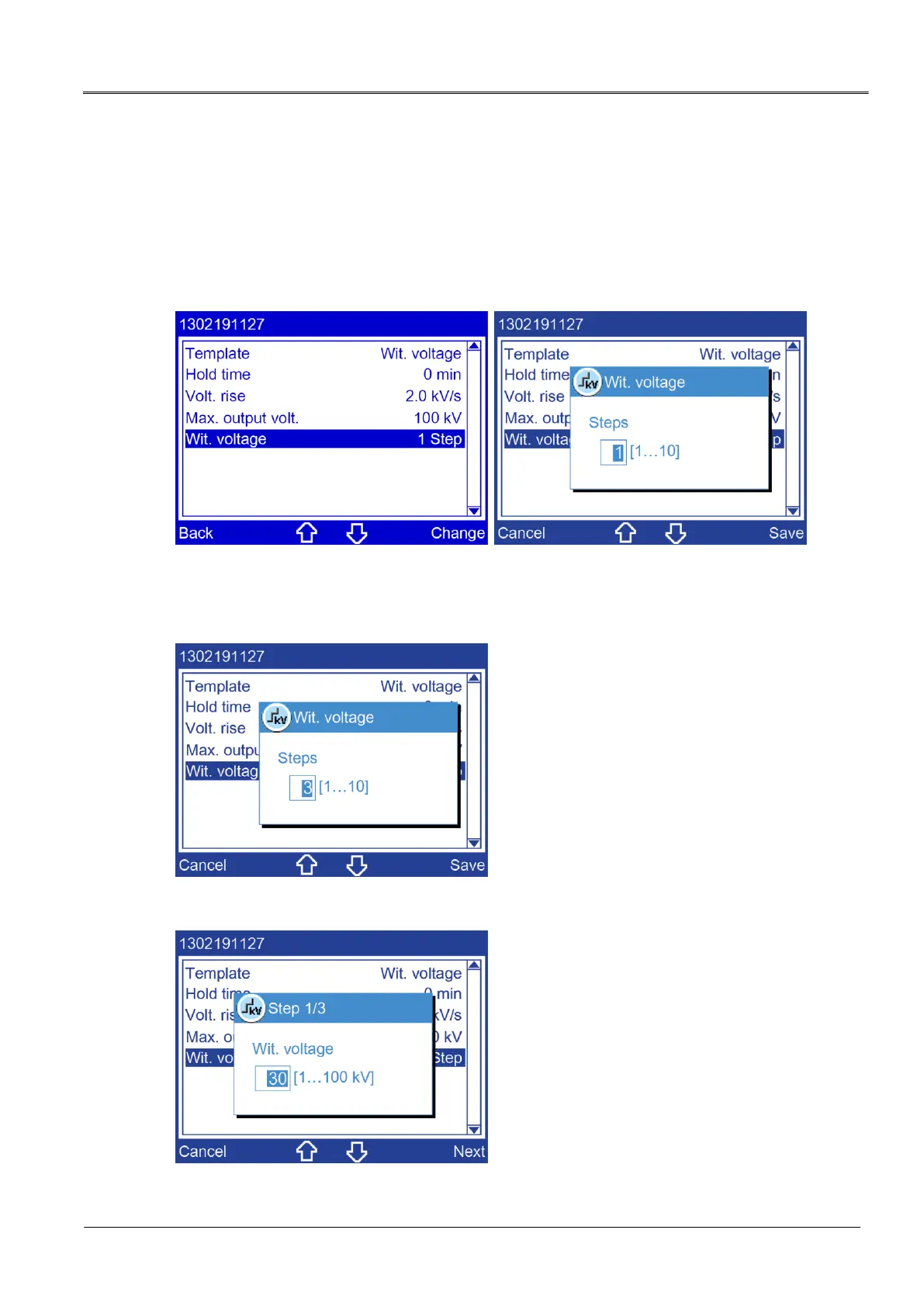

Setting the withstand voltage
Prerequisite
The tem
plate
Withstand voltage
has been s
elected.
Procedure
Main menu
>
U
ser-defin
ed measurement
>
...
>
T
emplate
>
Withst
and voltage
1.
Select menu item
Withstan
d voltage
.
2.
Select menu item
Change
.
3.
Select the num
ber of steps in which t
he withstand v
oltage is to b
e achieved.
For exam
ple:
4.
Click
Save
to co
nfirm the entr
y.
5.
Select the withstand
voltage value for the f
irst step.
57
59
Table of Contents
Default Chapter
3
Table of Contents
3
1 About this Manual
6
Using this Manual
6
Applicability of the Instructions
6
Structure of Safety Instructions
6
View Settings
7
Note on the Screenshots and Graphics Used
8
2 For Your Safety
9
Instructions to the User
9
Intended Use
10
Avoid Dangers, Take Safety Measures
10
Dangers When Working with Electric Voltage
11
Special Personal Protective Equipment
12
3 Product Information
13
Full Illustration
13
Operating and Display Elements
16
USB Interface
17
Power Supply
17
Rating Plate
18
4 Technical Data
19
5 Basic Insulating Oil Test Procedure
20
6 Operating the Oil Breakdown Voltage Tester
21
Menu Navigation
21
Entering Numbers
21
Symbols and Abbreviations on the Display
22
Main Menu
23
Information on the Oil Breakdown Voltage Tester
24
Information on the USB Interface
24
7 Commissioning
25
Checks to Perform before Commissioning
25
Installing the Oil Breakdown Voltage Tester
26
Earthing the Oil Breakdown Voltage Tester
26
Replacing the Electrodes
27
Clean the Electrodes
28
Setting an Electrode Gap
28
Fill and Use the Test Vessel
29
Instructions for Sampling
30
Insert the Test Vessel
31
Turning on the Oil Breakdown Voltage Tester
32
8 Device Settings
33
Set Display Brightness
33
Select Language
34
Switch Printer On/Off
34
Overwrite Measurement Logs
35
Configure the IEC 60156:2018 Settings
35
Setting the Hold Time before the First Measurement
36
Adjusting the Stirrer
37
Setting the Electrode Shape
38
Configure the ASTM Settings
39
Display Individual Breakdown Values
39
Set the Hold Time before the First Measurement
40
Configure Settings for User-Defined Measurements
41
Set Date
42
Set Time
43
Reset Settings
43
9 Standardised Measurement
44
Overview of Standards
44
Carry out a Standardised Measurement
45
10 Quick Test
48
11 User-Defined Measurement
51
Creating a User-Defined Measurement
52
Overview of Templates
53
Selecting a Template
54
Setting the Hold Time before the First Measurement
54
Setting the Stirring Time During the Hold Time
55
Setting the Slew Rate for the Test Voltage
55
Setting the Duration of the Pauses between Measurements
56
Setting the Stirring Time in the Pauses
56
Setting the Number of Measurements
57
Setting the Maximum Output Voltage
57
Setting the Withstand Voltage
58
Selecting Which Measured Values Are Not to be Evaluated
59
Saving User-Defined Measurements
60
Running a User-Defined Measurement
61
Editing or Deleting a User-Defined Measurement
63
12 Display of Measurement Results
64
Measurement Log as Printout
65
Measurement Log on the Display
66
13 Putting the Device out of Operation
67
14 BAUR ITS Lite Software for Measurement Data Management
68
Description of Function
68
Installing ITS Lite
69
Starting ITS Lite
69
15 Checking the Measurement Accuracy of the Oil Breakdown Voltage Tester (Optional)
70
16 Maintenance
71
Cleaning the Oil Breakdown Voltage Tester
72
Replacing the Printer Paper Roll
74
Replacing the Printer Ink Ribbon
76
Replacing the Fuse
77
Calibration
77
Ordering Accessories and Spare Parts
78
17 Faults
79
Troubleshooting
79
Error Messages and Corrective Measures
80
18 Transportation and Storage
81
Packaging
81
Transportation
81
Storage
82
19 Warranty and after Sales
82
20 Disposal
83
Disposing of the Device
83
Disposing of the Insulating Oil
83
21 Delivery Includes and Options
84
22 Declaration of Conformity
85
23 Index
86
