Baur DTA 100 C User Manual

DTA 100 C User-defined measurement
822-129-8 53 / 90
11.1.1 Overview of templates
If your measurement is similar to a standardised measurement, you can load the settings
from a standard as a template and customise them in the other menu items.

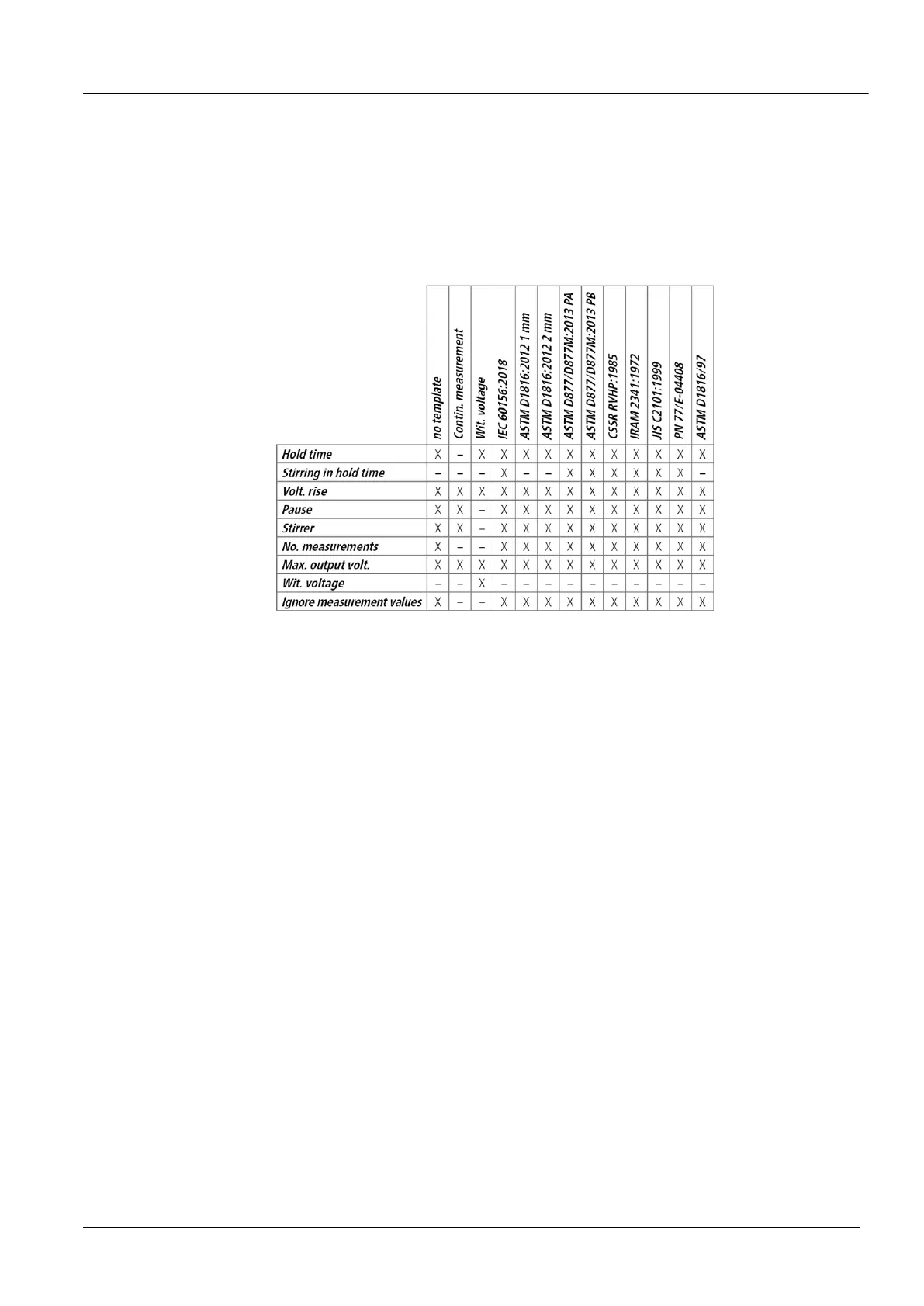

The following table provides an overview of the settings according to the template.
x: Adjustment possible
–: Adjustment not possible
Note: When a template is selected, only the settings relevant for that specific template will
be displayed. If you make an adjustment to one setting which then makes another setting
impossible, the setting which can no longer be selected will automatically be greyed out.
The following chapter explains in more detail how to adjust each parameter.
Continuous measurement template
A continuous measurement consists of blocks of 6 measurements each. The blocks will be
repeated until the menu item Stop is selected.
Withstand voltage template
In the case of a measurement with a withstand voltage, the voltage is raised gradually until
the desired voltage is achieved. The level of the withstand voltage, the number of steps and
the time the withstand voltage remains at a particular level, are all freely selectable.
The oil sample is stirred constantly during the measurement taken with a withstand voltage.
The parameter Stirring in hold time is not active in this template and is not displayed.
Note: The measurement with withstand voltage can also be used to check whether the oil
breakdown voltage tester is capable of generating the required high voltage.
Further information: Chapter Setting the withstand voltage (on page 58)
