Fuses

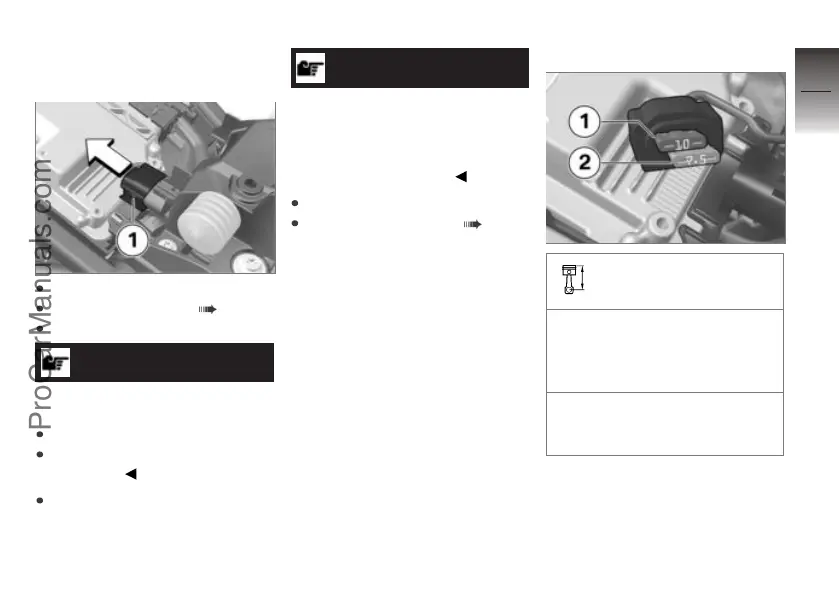

Replace fuses
Switch off ignition.
Remove rider's seat ( 75).
Disconnect plug 1.
ATTENTION
Bypassing defective fuses
Risk of short circuit and fire
Do not bypass defective fuses.
Replace defective fuses with
new fuses.
Consult the fuse assignment
diagram and replace the defec-
tive fuse.
NOTICE
If the fuses blow frequently, have
the electrical system checked by
an authorized specialized work-
shop, preferably an authorized
BMW Motorrad retailer.
Install connector 1.
Installing driver's seat ( 75).
Fuse assignments
Fuse carrier 1
10 A (Slot 1: instrument clus-
ter, anti-theft alarm system
(DWA), ignition lock, main relay
and diagnostic socket)
7.5 A (Slot 2: left multifunction
switch, Tire Pressure Control
(TPC/RDC), yaw rate sensor)
8
145
z Maintenance
ProCarManuals.com

BMW R 1200RS 2016 Specifications

General

Displacement	1170 cc
Bore x Stroke	101 mm x 73 mm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
ABS	BMW Motorrad ABS
Top Speed	Over 200 km/h
Traction Control	Standard
Tires Front	120/70 ZR17
Tires Rear	180/55 ZR17
Max Power	125 hp (92 kW) @ 7750 rpm
Transmission	6-speed
Frame	Two-section frame, front- and bolted-on rear frame
Rear Suspension	Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Front Brakes	Dual disc brake, diameter 320 mm, 4-piston calipers
Rear Brakes	Single disc brake, diameter 276 mm, 2-piston caliper
Seat Height	820 mm
Fuel Capacity	18 liters
Dry Weight	231 kg
Wheelbase	1530 mm
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
