BMW R 1200RS 2016 User Manual

ter refueling is greater than the
reserve quantity.

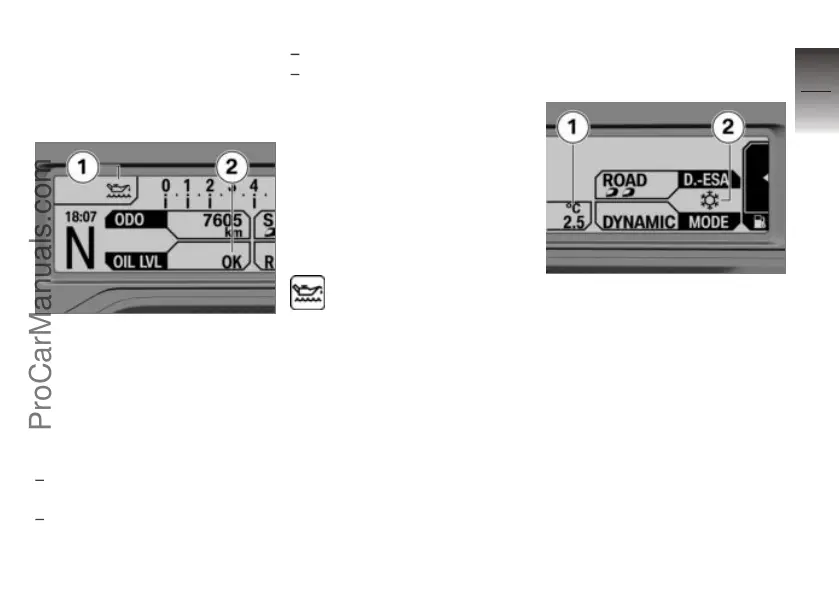

Oil level indicator
The oil level display 2 provides
information on the oil level in the
engine. This display can only
be activated when the vehicle is
stopped.
The conditions required for using
the oil level display are as follows:
Engine at normal operating
temperature.
Engine idling for at least ten
seconds.
Side stand retracted.
Motorcycle standing vertically
on level surface.
The readings mean:
OK: oil level correct.
CHECK: Check oil level during
next refueling stop.
---: no measurement possible
(above-mentioned conditions not
met).
If the oil level must be
checked, symbol 1 is
displayed, until the oil level is
detected again as correct.
Outside temperature
Engine heat can lead to spuri-
ous readings of outside tem-
perature when the motorcycle
is stationary. When the effects
of engine heat on the monitored
temperature become excessive
the display responds by tem-
porarily reverting to "--" as the
display reading.
If the outside temperature drops
below the borderline range, this
warning of possible black-ice for-
mation appears. The display au-
tomatically switches from any
other mode to the temperature
reading 1, when the tempera-
ture drops below this threshold
for the first time. The displayed
value flashes.
3
41
z Displays
ProCarManuals.com

BMW R 1200RS 2016 Specifications

General

Displacement	1170 cc
Bore x Stroke	101 mm x 73 mm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
ABS	BMW Motorrad ABS
Top Speed	Over 200 km/h
Traction Control	Standard
Tires Front	120/70 ZR17
Tires Rear	180/55 ZR17
Max Power	125 hp (92 kW) @ 7750 rpm
Transmission	6-speed
Frame	Two-section frame, front- and bolted-on rear frame
Rear Suspension	Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Front Brakes	Dual disc brake, diameter 320 mm, 4-piston calipers
Rear Brakes	Single disc brake, diameter 276 mm, 2-piston caliper
Seat Height	820 mm
Fuel Capacity	18 liters
Dry Weight	231 kg
Wheelbase	1530 mm
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
