Fuse carrier
50 A (Fuse 1: Voltage regula-
tor)
Diagnostic connector
Removing the diagnostic
connector
CAUTION
Incorrect procedure followed
when disconnecting the data
link connector for the On-
Board Diagnostics.
Motorcycle experiences malfunc-
tions
Only have the data link con-
nector disconnected by a spe-
cialist workshop or other autho-
rized persons during your next
BMW Service appointment.
Have the work performed by
appropriately trained staff.
Refer to the vehicle manufac-
turer specifications.

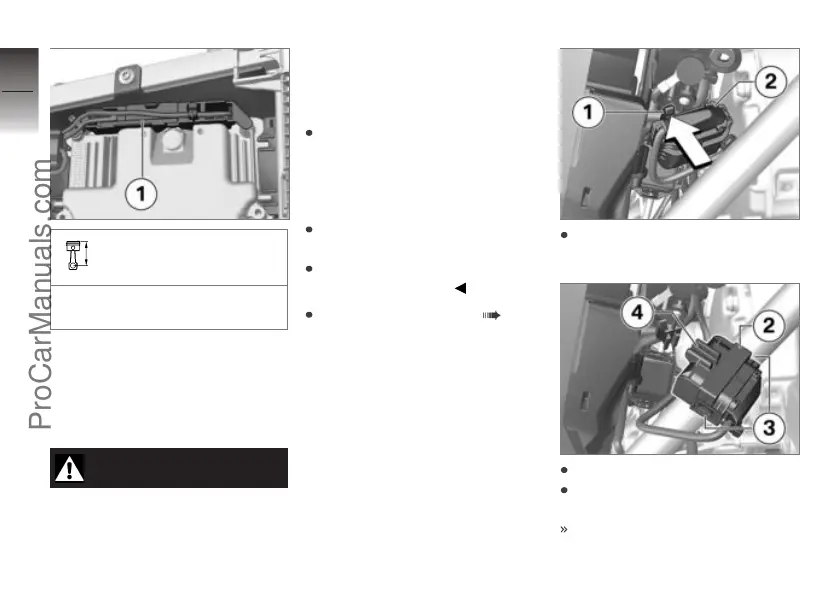

Remove battery cover ( 143).
Push on hook 1 and pull data
link connector 2 up and out.
Press locks 3 on both sides.
Remove data link connector 2
from bracket 4.
The diagnosis and information
system interface can be con-
8
146
z Maintenance
ProCarManuals.com

BMW R 1200RS 2016 Specifications

General

Displacement	1170 cc
Bore x Stroke	101 mm x 73 mm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
ABS	BMW Motorrad ABS
Top Speed	Over 200 km/h
Traction Control	Standard
Tires Front	120/70 ZR17
Tires Rear	180/55 ZR17
Max Power	125 hp (92 kW) @ 7750 rpm
Transmission	6-speed
Frame	Two-section frame, front- and bolted-on rear frame
Rear Suspension	Cast aluminium single-sided swing arm with BMW Motorrad Paralever
Front Brakes	Dual disc brake, diameter 320 mm, 4-piston calipers
Rear Brakes	Single disc brake, diameter 276 mm, 2-piston caliper
Seat Height	820 mm
Fuel Capacity	18 liters
Dry Weight	231 kg
Wheelbase	1530 mm
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
